When Should You Move From 3D-Printed Prototypes to Injection-Molding Tooling?

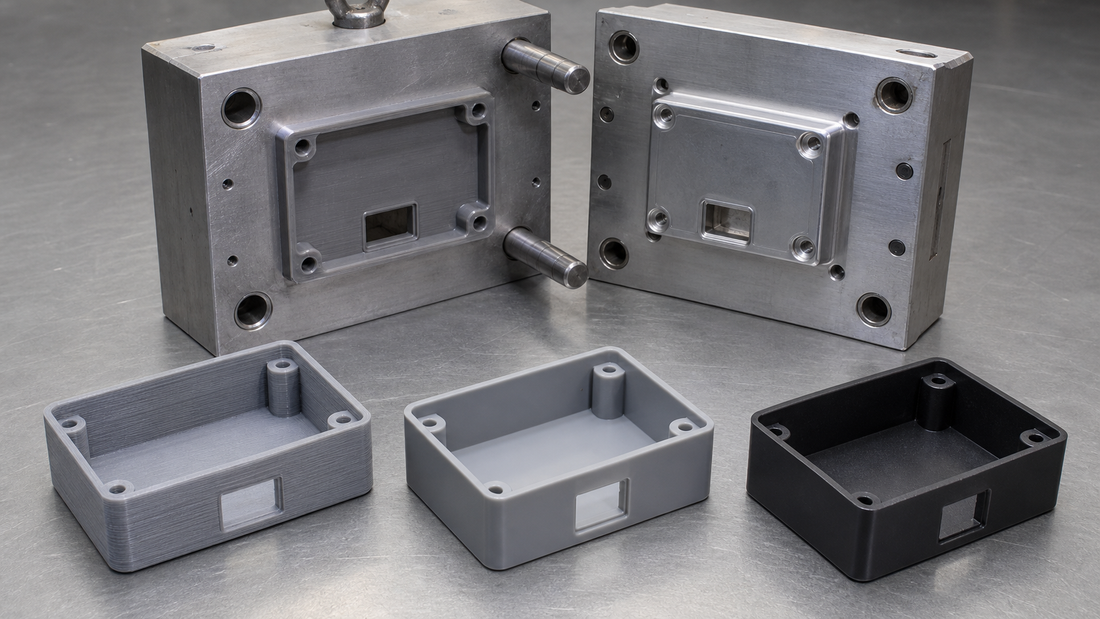

You should move from 3D-printed prototypes to injection-molding tooling when the design is stable, production-material behavior matters, expected demand can justify tooling, and you have a controlled way to approve pilot parts. Quantity matters, but there is no universal break-even number. Tool complexity, cavity count, material, cycle, inspection, expected revisions, and the cost of being wrong all move the decision.
Do not treat a successful print as automatic permission to cut a mold. A prototype can prove shape, assembly, ergonomics, or one load case without proving draft, ejection, gate location, shrinkage, cooling, cosmetic quality, or production repeatability. Tooling should begin only after the remaining risks are named and intentionally accepted.
1. Decide what the prototypes must prove before tooling
A prototype is evidence only for the conditions actually tested. A low-cost FDM model may be sufficient for envelope, hand feel, connector access, and assembly sequence. A higher-detail resin model may reveal parting-line placement or cosmetic transitions. A production-intent polymer sample may be necessary for snap behavior, chemical exposure, creep, heat, impact, or regulatory work.
Write an approval list before requesting a mold. Typical items include mating-part fit, critical dimensions, fastener access, cable routing, wall and boss geometry, serviceability, appearance zones, labeling space, expected loads, and the intended polymer. Record which points were measured, which were physically tested, and which remain assumptions.
Formlabs and Protolabs both describe additive manufacturing as useful before or alongside molding because it allows fast learning without committing to conventional tooling. That does not mean the printed material predicts molded performance. Print orientation, voids, layer interfaces, resin cure, and surface finish differ from an injected thermoplastic. Use the print to retire the risks it can represent and plan another test for the risks it cannot.
2. Compare total economics, not only price per molded part
Injection molding separates cost into an upfront tool and a repeated production process. 3D printing usually avoids dedicated tooling but spends more machine time and labor per part. The economic crossover therefore depends on the complete project rather than one quoted unit price.
| Decision input | Keep printing while… | Prepare tooling when… |
|---|---|---|
| Design maturity | interfaces or requirements are still changing | controlled revisions have stabilized |
| Demand | quantity is uncertain or highly customized | a realistic forecast supports repeated identical parts |
| Material | printed material answers the current test | production polymer behavior is now a gating requirement |
| Geometry | moldability changes are still unresolved | draft, walls, ribs, bosses, gate, parting, and ejection have owners |
| Change risk | feedback is likely to change hard geometry | the cost of delaying exceeds the controlled tooling risk |
| Quality | individual inspection is manageable | repeatable pilot and batch acceptance plans are defined |
Model at least a conservative, expected, and high-demand case. Include tool design and manufacture, sample rounds, tool changes, molding, material, setup, finishing, inspection, packaging, rejected parts, and inventory carrying risk. Also price one final prototype revision and bridge production. A low unit price is not a saving if the tool encodes a connector opening that changes next month.
3. Make the part mold-ready before freezing CAD
Mold-ready CAD is not simply the printed model sent to a toolmaker. Establish a pull direction and parting strategy. Add draft where surfaces move against the tool. Keep walls reasonably uniform, core thick regions, connect bosses with proportionate ribs, radius abrupt transitions, and avoid trapped undercuts unless a side action is justified. Identify the cosmetic side and surfaces where gate vestige, ejector marks, weld lines, or texture transitions are unacceptable.
These changes interact. Moving the gate changes flow and weld-line location. Thickening a boss changes cooling and sink risk. Adding texture can require more draft. Changing polymer changes shrinkage, stiffness, flow, and processing conditions. The material, part, mold, machine, and acceptance criteria must therefore be reviewed as one system.
Do not copy a generic draft angle, wall thickness, or shrink value into every design. Those values depend on depth, texture, polymer grade, flow direction, tool surface, and supplier process. Mark function first, then let the molding and tooling plan establish appropriate values for the selected system.
4. Choose the right tooling stage and define the handoff
The next step does not always have to be a hardened multi-cavity production mold. Depending on the purpose and expected run, teams may use a single-cavity aluminum tool, modular inserts, bridge tooling, or a carefully bounded printed mold. Formlabs documents printed molds for low-volume learning, while also emphasizing mold design, clamping, cooling, and demolding. Such tools are not universal substitutes for conventional tooling; pressure, temperature, geometry, material, and required life constrain them.
A quote-ready handoff should include the controlled STEP model and drawing, expected annual and batch quantities, target polymer grade or required properties, color and additive requirements, critical dimensions, cosmetic zones, mating parts, inserts, marking, finishing, inspection level, and expected tool life. State whether the supplier may propose geometry changes and who approves them.
Request a written list of assumptions. Confirm cavity count, tool material, ownership and storage, change procedure, sampling rounds, included reports, maintenance responsibility, expected life basis, compatible press envelope, and what happens if the first sample misses a requirement. Ambiguity here becomes expensive after metal is cut.
5. Treat pilot parts as a gate, not as automatic production approval
First molded samples establish whether the actual system can fill, pack, cool, eject, and repeat the part. Inspect them against the same functional datums and interfaces used to approve the design. Check dimensions only after conditioning and timing are defined where the polymer requires it. Review short shots, flash, sink, warpage, burns, weld lines, gate vestige, ejector marks, surface, color, assembly, and functional tests.
Separate tool correction from process adjustment and design change. A process window should not depend on one fragile setting that produces one acceptable sample. After changes, document the approved revision and retain controlled reference parts. Then define first-off, in-process, final, and lot traceability expectations for the production quantity.
If you have a proven prototype but are unsure whether to keep printing, use bridge production, or prepare tooling, send the controlled model, test evidence, material needs, forecast, and revision risks through MALIEV’s custom manufacturing service. The useful next step is a process decision based on your part—not a promise that every design should be molded.
