How Should You Design Threaded Inserts for 3D-Printed Parts?
Direct answer: use a threaded insert in a 3D-printed part when the joint must be assembled repeatedly, retain useful clamp load, or resist stripping better than a screw driven directly into the printed polymer. Select the insert type for the printing process and material, design the boss around the insert manufacturer's hole recommendation, install it with controlled alignment, temperature or force, and depth, then test the complete joint in the actual build orientation.
Do not choose the pilot hole from the nominal screw size alone. The correct hole depends on the insert's outside geometry, straight or tapered body, installation method, printed material, process variation, and the load path through the surrounding boss.
1. Decide whether the joint needs an insert
A metal insert is not automatically required for every screw. A thread-forming screw can be suitable for a low-cost assembly that is closed only a few times and has enough polymer thickness. A tapped printed hole may work for a larger thread in a stable material when the expected torque and service cycles are modest. A captive nut can provide a standard metal thread when there is access for a pocket or through-slot. A threaded insert becomes attractive when service access, repeat assembly, compact packaging, or a controlled metal thread matters.
| Thread method | Useful when | Main design risk |
|---|---|---|
| Screw directly into polymer | Few assembly cycles and low joint demand | Stripping, stress concentration, or inconsistent reuse |
| Tap the printed hole | Larger geometry and modest load in a machinable printed material | Weak or incomplete threads and orientation sensitivity |
| Captive nut | Back-side or side access is available | Nut rotation, pocket breakout, or difficult assembly |
| Threaded insert | Reusable compact metal thread with planned installation | Boss cracking, poor melt flow, pull-out, or spin-out |
Define what the joint must do before selecting hardware: how often it opens, which component should fail first, whether the screw carries tension or shear, what clamp load is needed, and whether the assembly sees vibration, heat, chemicals, or impact.
2. Match the insert and installation method to the printed material
Heat-set inserts are commonly used in printed thermoplastics because controlled heat softens the surrounding polymer so it can flow into the insert's retention features. SPIROL notes that heat or ultrasonic styles can provide strong retention in printed thermoplastics, while press-in styles may be considered where thermal installation is unsuitable, including some thermoset photopolymer applications. Formlabs also documents press-fit and expansion-style approaches for specific SLA and SLS workflows.
One insert does not work across FDM, SLS, and resin printing. Thermoplastic response depends on polymer, filler, moisture, print density, wall structure, and heat-deflection behavior. A brittle photopolymer can crack under an aggressive knurl or interference fit. A self-tapping insert creates cutting forces and needs enough surrounding material.
Use the hardware supplier's drawing and installation guidance for the exact part number. Confirm thread size, insert length, head or flange, hole form, installation direction, and whether the insert is symmetrical. Do not copy a pilot diameter from a visually similar insert sold by another supplier.
3. Design the boss and hole around the exact insert
The hole must accept the insert while leaving enough polymer to fill retention features without splitting the boss. SPIROL's hole-design guidance distinguishes straight and tapered inserts and recommends using the dimensional table for the selected style. Filled materials and different manufacturing routes can require adjustment, so supplier data is a starting point for controlled trials rather than a universal value.
Make the hole deeper than the insert so the installation tool and displaced material have clearance, and so the assembly screw cannot bottom against the closed end. A screw that bottoms can push the insert out or create a misleading torque reading. Keep the insert flush or at the specified seating depth and add a lead-in only when the selected hardware guidance allows it.
The boss needs enough radial and axial material for the intended load. Blend it into the surrounding part with fillets and ribs that follow the load path instead of attaching a tall thin cylinder to a flexible wall. Keep the boss away from unsupported edges. For FDM, consider perimeter count, local solid material, build orientation, and layer interfaces around the boss; nominal infill percentage alone does not define local strength.
4. Put the insert on the correct side of the joint load
Joint layout matters as much as insert retention. When possible, arrange the mating part so tightening pulls the insert's flange or larger bearing end toward the plastic rather than extracting the insert from its weakest direction. Provide a proper clearance hole in the mating component so the screw clamps the parts together instead of threading into both components and creating a false joint.
Choose screw engagement that uses the insert thread without bottoming. Add a washer or wider bearing surface where the screw head would crush a soft mating part. If the joint carries shear, consider a shoulder, dowel, lip, or fitted geometry so the screw and insert do not carry all lateral load through friction alone. Keep pry loads and long lever arms away from a small boss.
For an enclosure lid, the insert boss may mainly carry clamp load and repeated service cycles. For a bracket, the same M-size thread may see tension, shear, vibration, and bending. The hardware size alone does not make those applications equivalent.
5. Install with controlled alignment, heat or force, and depth

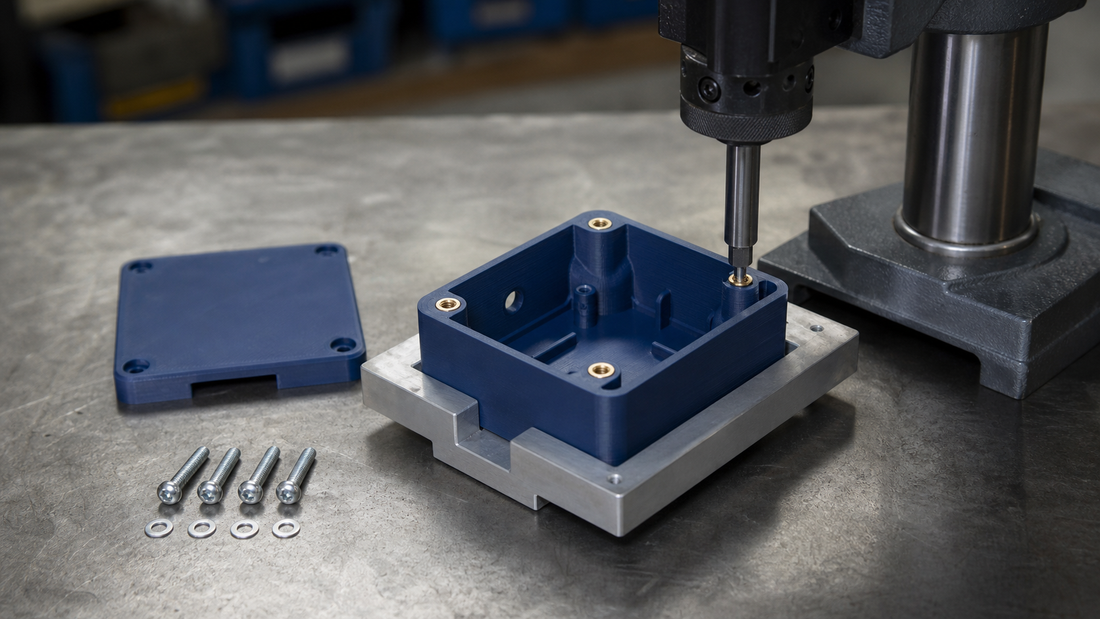

For heat installation, use a stable press or guided tool with an insert-specific tip where possible. The insert should move axially, not be stirred around with the tip. Temperature must be high enough for the polymer to flow into retention features but not so high that the boss collapses, chars, or leaves a large softened zone. The correct setting depends on the insert, polymer, tool, and production rate.
Support the part during installation. A thin enclosure floor can flex while the boss is pressed, causing a tilted insert or cracked attachment. Stop at a controlled depth and allow the polymer to solidify before applying side load. Keep molten polymer out of the internal thread and inspect for protrusion, tilt, sink, cracks, and incomplete seating.
Do not install an insert with an ordinary soldering iron in an uncontrolled production process and assume repeatability. A hand tool can be useful for development, but production needs a documented tip, temperature, force or travel method, support fixture, depth criterion, and inspection plan.
6. Validate the complete printed joint
Supplier tables compare insert styles under defined conditions; they do not guarantee performance in a different printed material or geometry. SPIROL explicitly advises testing the actual assembly because insert design, plastic, hole quality, installation, and component geometry all affect torque and pull-out behavior.
Build representative coupons or prototype bosses using the intended printer, material condition, orientation, perimeter strategy, and post-processing. Test installation consistency, assembly torque, repeated service cycles, pull-out or spin-out where relevant, and the real load direction. Inspect failures: an insert pulling out, a boss splitting, layer separation, screw failure, and wall bending require different design changes.
- Select the exact insert and download its drawing.
- Use the supplier's hole form and starting dimensions.
- Provide sufficient boss material, fillets, ribs, and edge distance.
- Leave depth for installation and screw-end clearance.
- Support the part and control insertion alignment and depth.
- Keep the screw from bottoming and separate clamp load from shear when possible.
- Test the actual printed joint across representative cycles and conditions.
Frequently asked questions
Are heat-set inserts suitable for every 3D-printed plastic?
No. Heat installation is intended for compatible thermoplastics, and the required temperature and boss design depend on the material and insert. Brittle or thermoset printed materials may need press-in, expansion, captive-nut, or other fastening strategies validated for that process.
What pilot-hole diameter should I model for a threaded insert?
Use the hole recommendation for the exact insert manufacturer, series, size, and installation method, then validate it in the intended printed material and process. The nominal screw size alone does not determine the pilot hole.
Why does a heat-set insert pull out or spin?
Common causes include the wrong hole, insufficient boss material, poor polymer flow into retention features, excessive temperature, crooked or shallow installation, screw bottoming, and loads that pry or extract the insert. Failure inspection is needed to identify the actual cause.
What should I send when requesting a printed part with inserts?
Send the CAD, insert part number or required thread, mating screw and component, assembly direction, expected service cycles, loads, environment, print material preference, critical interfaces, and how the joint will be accepted or tested.
