Can You Recreate a Replacement Part Without CAD? 3D Scanning and Reverse Engineering Explained
Yes, a replacement part can sometimes be recreated without the original CAD file—but a 3D scan is the beginning of the work, not an automatic manufacturing-ready answer. The practical route is: capture accessible physical geometry, clean and align the scan data, decide which features and dimensions represent design intent, create an editable model when needed, then validate it against the original part and its mating conditions.
If you search for scan 3d, สแกน 3d, or reverse engineering, the useful question is not only “Can you scan it?” It is “What evidence must the replacement reproduce?” A cover may need outer clearance; a bracket may need hole locations and load faces; a pump housing may need interfaces that a scanner cannot see. That distinction prevents a convincing-looking mesh from being mistaken for a verified replacement.
1. A scan records observed geometry, not the original design intent
Optical scanning captures surface information from the part that the sensor can see. After multiple views, the data may be registered, cleaned and converted into a polygonal mesh. NIST describes physical-object workflows in which measured geometry becomes point-cloud data, is registered and cleaned, and is then tessellated into a mesh. That mesh can be valuable evidence, but it does not answer every engineering question by itself.
For example, a worn edge, casting texture, paint thickness, dirt, damage or a repair in the original part may be captured along with the intended geometry. Holes may be visible but their function, axis relationship and target fit are not automatically known. A reverse-engineering project therefore needs a brief: are we preserving a shape for a visual replacement, recovering a mating interface, recreating a legacy model, or redesigning a part while retaining key connections?
2. Prepare the part so the needed surfaces are visible
Capture quality depends on access. The operator needs a clear line of sight to relevant faces and sufficient overlap between views to align them. A part should be stable but not blocked by a clamp across an important face. It may need to be repositioned to capture both sides. Deep internal cavities, undercuts, transparent or highly reflective surfaces, very small features and flexible thin walls can require a different approach, preparation, direct measurement or an explicit limitation in the result.
Before the scan, identify the surfaces that matter: mounting faces, bores, threaded regions, sealing lands, cable exits, locating features and cosmetic faces. Put a scale reference, key measurement or mating sample in the plan when appropriate. Do not hide uncertainty behind a general request to “copy exactly.”
3. Hidden or difficult features need a deliberate plan
A scanner cannot collect a surface it cannot see. If the critical feature is deep inside a housing, behind a flange or obscured by an assembly, plan access before promising an output. A partial scan can still be useful when combined with direct caliper measurements, gauge references, drawings, known mating components or another inspection method. The important point is to identify which dimensions are evidence-backed and which are inferred.

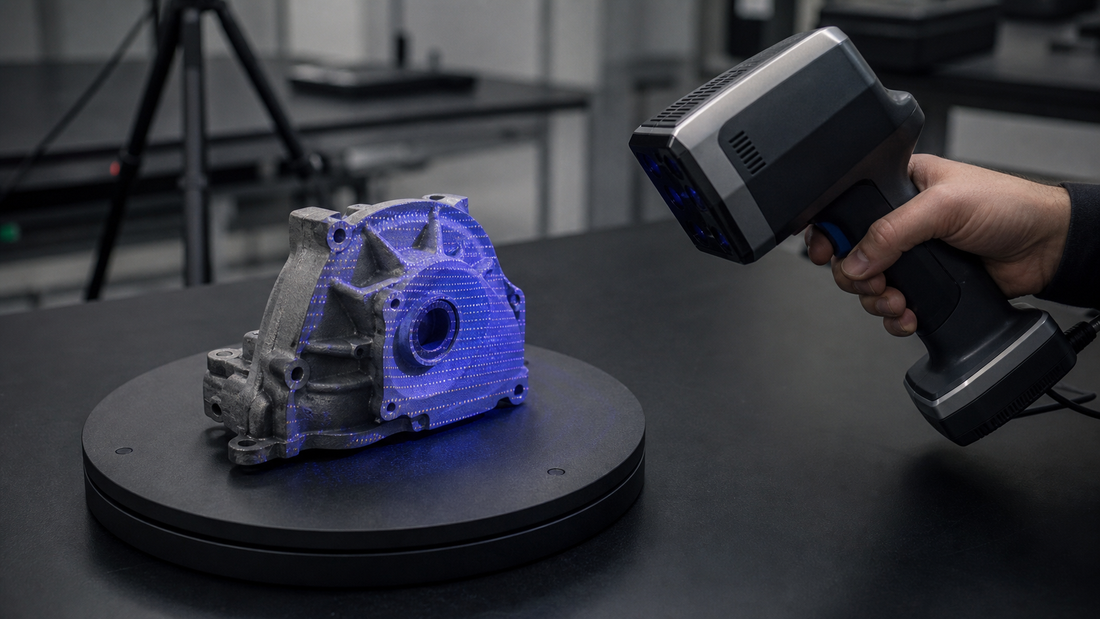

Structured-light scanning is one method among several. The appropriate measurement method depends on geometry, scale, surface condition, access and the required result. Do not interpret a coloured pattern or dense mesh as proof that a feature is within a required tolerance. When a bore, flange or interface is critical, its relationship to the mating part must be checked deliberately.
4. Mesh data and editable CAD serve different jobs
A scan mesh is made of facets. It can be suitable for visualization, comparison, some print-oriented work and as a reference while modeling. An editable CAD model, by contrast, represents features and surfaces in a form that can be revised and used downstream. NIST notes that facet data from 3D scanning and reverse engineering can be integrated with precise boundary-representation geometry; mathematically defined b-rep models are used where high precision is needed for engineering analysis, manufacturing and inspection.
This is why “mesh to CAD” is not a simple file conversion. The modeler may fit planes, cylinders, holes, fillets, profiles and constrained relationships based on the scan plus measurements and functional knowledge. Where the original intent is uncertain, record the assumption. An editable model can then be reviewed, revised and prepared for the intended manufacturing route instead of carrying every rough facet from the physical sample forward.
5. Validate the replacement against the job it must do
Validation should match the risk. A non-critical cover may need a controlled fit and clearance check. A bracket may need its mounting faces, hole relationship and load path checked. A sealing or rotating interface may need a more specific measurement and acceptance plan. Test a representative prototype before committing to a batch when the cost of a poor fit is significant.
Bring the mating component whenever possible. A feature can be geometrically close to the original and still fail because of assembly stack-up, wear in the counterpart, an unsuitable material or a missed functional datum. The NIST example of a scanned impeller illustrates a disciplined route: scanning and reverse engineering produced a CAD model, printed prototypes were handled and checked, then the design was varied and pursued through later manufacturing choices.
6. Send a request that makes the result useful
| Provide | Why it changes the scope |
|---|---|
| Physical part and clear photos | Shows accessible surfaces, damage and handling constraints. |
| Function and failure context | Distinguishes a cosmetic copy from a load, seal or motion-critical replacement. |
| Mating components or critical dimensions | Defines the interfaces that need evidence and validation. |
| Desired deliverable | Separates mesh capture, editable CAD, prototype and manufacturing review. |
| Material, quantity and environment | Connects the recovered geometry to the next manufacturing decision. |
MALIEV can use this information to discuss a scoped scan, reverse-engineering and validation route for a replacement-part enquiry. Start with the part’s function and its mating context; a realistic scope is more valuable than a promise to reproduce unknown geometry exactly.
Frequently asked questions
Can a 3D scan directly create an exact CAD file?
No. A scan normally produces measurement data such as point-cloud or mesh geometry. Turning that reference into an editable CAD model requires decisions about design intent, features, surfaces and dimensions, then validation against the physical part and its mating conditions.
Can every replacement part be scanned successfully?
No. The accessible surfaces, size, finish, reflectivity, transparency, hidden cavities and ability to stabilize or reposition the part affect what can be captured. Some critical features may need direct measurement or a different inspection method.
Is an STL enough to make a replacement part?
An STL can be useful for a print-oriented or reference workflow, but it is a tessellated mesh, not automatically an editable parametric model. Manufacturing and later revision can require CAD surfaces, solids, dimensions and an agreed acceptance plan.
What should I provide for a scan-to-replacement enquiry?
Provide the physical part if permitted, clear photos, its function, mating components or key dimensions, material and environment if known, quantity, and the output needed: scan mesh, editable CAD, prototype or manufacturing-ready review.
