How to Prepare a STEP File and Drawing for a CNC Machining Quote
For a CNC quote, send a STEP file for geometry and a drawing or concise requirement note for the information the model cannot carry clearly. The goal is not to make a long document. It is to explain the material, quantity, critical interfaces, holes, threads, key surfaces, finish and the conditions by which the part will be accepted.
Searches such as รับงาน CNC, ผลิตงานตามแบบ and รับทำ CNC often begin with “I have a file.” That is a valuable start, but a manufacturing file needs context. The same solid model can be a visual sample, a one-off bracket, a locating plate or a mating component with very different requirements. A good handoff makes that difference visible before cutting begins.
1. Use STEP for the geometry you want reviewed
STEP is a widely used format for product data exchange. NIST provides a STEP File Analyzer and Viewer for checking a file’s structure and geometry, and notes that ISO 10303 (STEP) supports product-data exchange across CAD, engineering analysis, manufacturing and related systems. For a CNC request, a clean solid STEP model is typically more informative than a triangulated mesh because it preserves surfaces and form in a way that can be inspected and, where appropriate, edited downstream.
Export the latest stable version, not an old prototype. Confirm the units and make sure bodies that should be separate are separate. If the assembly contains several parts, name the requested part clearly in the message even if the file has generic internal names. If you only have STL, send it honestly; do not convert a mesh to STEP and assume that it has recovered design intent.
2. Let the drawing explain the requirement that geometry alone misses
A drawing or concise note becomes essential when a feature has an intended function rather than merely a shape. State the material requirement or operating context, quantity, desired finish, thread and fastener information, critical dimensions, and any mating component. Identify surfaces that locate, seal, slide, carry a bearing or must remain cosmetic. These details guide material choice, tool access, workholding and inspection planning.
Do not use a drawing as a second, conflicting model. Avoid duplicate dimensions that define the same feature from different origins. When a value controls the assembly, make it clear which relationship is the important one. A well-defined short drawing is more useful than a dense sheet that leaves the functional condition ambiguous.
3. Give machining and inspection the same reference frame
Datums are reference features used to relate dimensions and inspection. For a bracket, a broad mounting face may be the first reference, a side face the second, and an end face or locating feature the third—only when that reflects how the part actually assembles. The exact scheme follows the function; it should not be copied as a decorative convention.
Why does this matter? If hole position is measured from one arbitrary edge while the assembly locates from another, a correct-looking dimension can produce the wrong functional relationship. A datum approach gives the machining setup and later inspection a common language. NIST’s work on manufacturing feature recognition describes holes, slots and related features as manufacturing information within a solid model; the handoff still needs to say which features are critical and how they relate in the assembly.

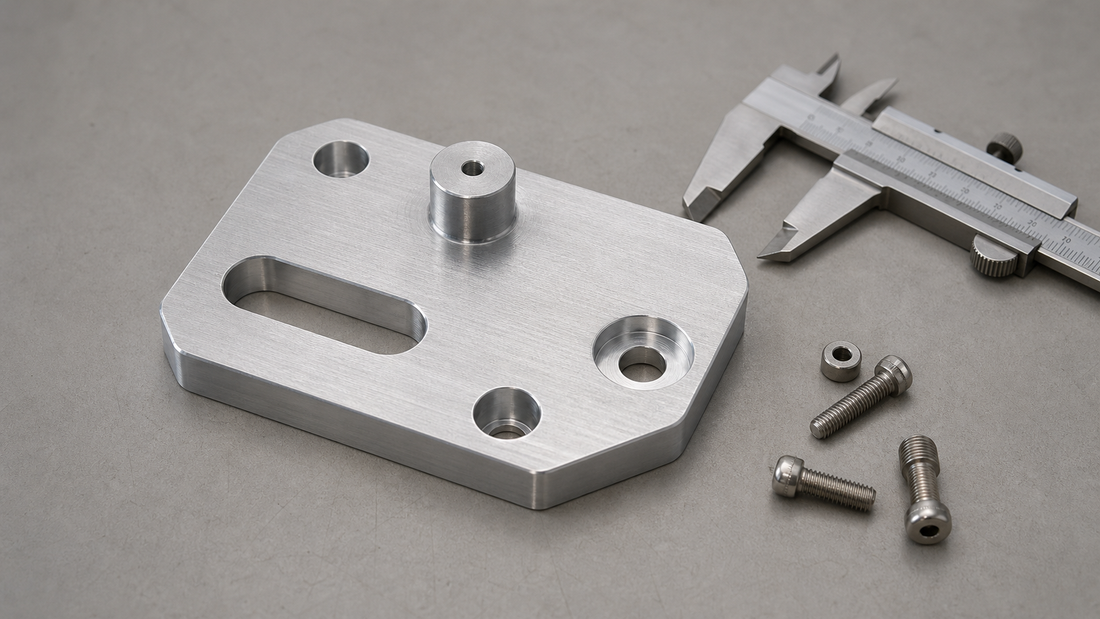

4. Specify interfaces, not just nominal hole diameters
For every important hole, say what it is for: clearance fastener, tapped hole, dowel, bearing, cable pass-through or inspection point. Provide the mating hardware or its standard where possible. Likewise, identify a slot as a clearance feature, adjustment direction or locating relief. A number without its interface can be misinterpreted as a generic hole.
When a surface mates to an existing part, share that mating component, a photo or a controlled set of dimensions. State whether the part must sit flush, slide, rotate, seal or simply avoid interference. This moves the conversation from “machine this shape” to “produce the relationship the assembly needs.”
5. Plan acceptance before the part is made
Choose a proportionate check for the risk. A simple prototype may need an assembly and clearance check. A locating plate may need the relationship of holes to mounting faces checked. A cosmetic enclosure may need an agreed visible-surface expectation. Do not request a blanket, unspecified “high precision”; state the features that must pass and how they will be assessed.
A controlled fixture can help test the assembly relationship without claiming a universal measurement result. If a first article exposes an issue, capture the evidence and update the source model, drawing or requirement note. That record is what makes the next part more reliable.
6. A compact CNC handoff checklist
| Include | Why it matters |
|---|---|
| Current STEP or native CAD | Defines the geometry to review and machine. |
| Material, quantity and required date | Sets the basic production context. |
| Drawing or notes for critical features | Explains dimensions, threads, finish and acceptance conditions. |
| Mating parts and fasteners | Clarifies functional interfaces. |
| Datum/inspection intent where relevant | Aligns setup and validation with the real assembly. |
MALIEV can use this package to discuss a CNC quote route for a prototype or custom part. The useful next step is a requirement review of the actual file and interfaces—not a general promise based only on the word “STEP.”
