What to Prepare for a 3D Scanning Service: Part Access, Surface Condition, and the Output You Need
Before sending a part for 3D scanning, prepare the part’s access, condition and purpose—not just the object itself. The best request says which surfaces must be captured, what may be removed or repositioned, which features mate with other components, and what output you need after scanning. Those details determine whether the result is a useful mesh, editable CAD reference, prototype input or manufacturing review.
Customers searching for รับสแกน 3d, scan 3d or สแกนชิ้นงาน 3d often ask what to bring. Bring the physical part when permitted, but also bring its context: photos of the assembled state, detachable hardware, mating parts, the use case and any critical areas. A clean-looking scan does not compensate for missing information about the part’s job.
1. Define the output before capture begins
A 3D scan can lead to different deliverables. A mesh may be adequate for visualization, comparison or a print-oriented reference. An editable CAD model needs feature decisions and often further measurement. A manufacturing handoff needs the geometry linked to material, interfaces, quantity and acceptance checks. Tell the team which outcome you need, because the relevant surfaces and validation plan change with the output.
NIST describes point-cloud capture, registration, cleaning and mesh generation as part of a physical-object digitization workflow. That makes scanning a measurement activity, not a promise that every mesh is ready for every downstream process. If the part must mate to another component, say so before the capture plan is set.
2. Preserve the assembly context before removing anything
Photograph the part in its assembled state from several angles. Note orientation, cable routes, labels that identify the version, loose hardware, seals, shims, spacers and covers. If an item can be removed safely and you are authorized to remove it, a separate capture may reveal the face beneath. Keep the parts organized so the team can understand what was originally together.
Do not dismantle a safety-critical, sealed, pressurized or customer-owned assembly merely for scanning. Instead, state the access constraint. The scope may need to focus on the visible geometry, use a mating sample, rely on direct measurements or pause until an approved disassembly route exists.
3. Review surface condition without changing critical geometry
Optical capture depends on the surface that the scanner sees. Dark, glossy, transparent, wet, dirty or highly reflective areas can need a different capture plan. Discuss surface condition and permitted preparation ahead of time. A team may use an approved approach for a particular surface, but a coating or treatment is not a default answer and must not alter a critical feature or contaminate a part that must remain clean.
Tell the team about paint, plating, texture, damage, corrosion, repairs and surfaces that must not be touched. If a damaged area is part of the reason for reverse engineering, identify whether the replacement should reproduce it, ignore it or be redesigned around the original functional intent.
4. Plan access to important faces, not only the most visible face

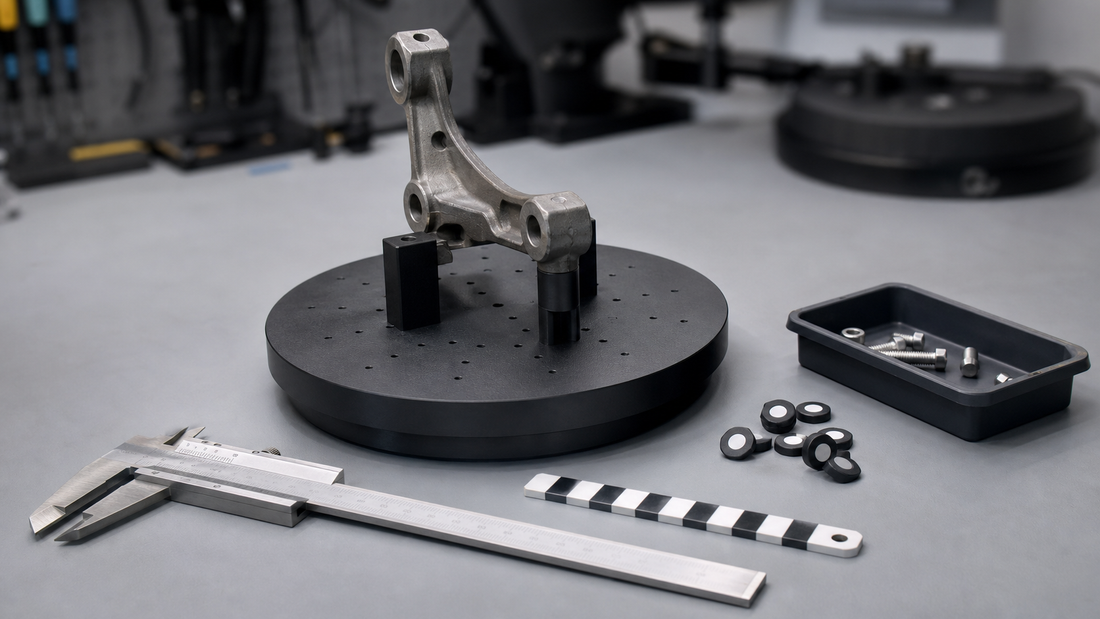

The scanner needs line of sight. Stabilize the part on supports that do not block mounting faces, bores or locating features. Plan repositioning when both sides are important. Deep cavities, undercuts and enclosed passages may not be visible from a practical scan angle, so list them early. A partial scan can still be valuable when paired with direct measurements, accessible mating parts or an agreed model assumption.
Artec’s reverse-engineering guidance describes capturing all surfaces through repeated positions and building a polygonal mesh from the scan. The practical implication is simple: if an important face cannot be seen or repositioned, identify that limitation before requesting a final CAD or replacement part.
5. Bring evidence for the functional interfaces
A scan gives geometry; it does not explain which hole locates, which face seals, which direction carries load, or which clearance is intentional. Bring a mating component if possible, or provide measurements, drawings, photographs and a short description of the part’s function. Mark critical areas in a photograph without writing on the part itself.
For a replacement part, say whether the goal is a visual cover, a mounting bracket, a wear item, a seal interface or a motion-related component. This guides whether the next step is mesh cleanup, feature-based CAD, a physical prototype, CNC review or another manufacturing route. NIST’s 2026 scanning case illustrates this progression: scan and reverse engineer the geometry, make physical prototypes for confirmation, then use the validated model for later design and manufacturing choices.
6. Use a handoff checklist
| Bring or state | Why it matters |
|---|---|
| Part and assembled-state photos | Preserves orientation, missing pieces and visible access. |
| Removable items and hardware, organized | Clarifies which faces are separate and what may be scanned. |
| Mating part or critical dimensions | Defines functional interfaces rather than visual similarity alone. |
| Surface and handling constraints | Prevents unsuitable preparation or alteration. |
| Desired output and use | Scopes mesh, CAD, prototype and manufacturing work. |
MALIEV can use this checklist to discuss a sensible scanning scope for a replacement or reverse-engineering enquiry. Start with the part’s job and the desired output; it is the most reliable way to turn a scan 3d request into a useful engineering handoff.
Frequently asked questions
Do I need to clean the part before a 3D scan?
Remove loose dirt, oil, detachable items and obstructions where permitted, then tell the scanning team about coatings, damage and surfaces that must not be altered. Do not modify critical geometry simply to make capture easier.
Can glossy, dark or transparent parts be scanned?
They may require a planned capture approach because optical systems depend on the observed surface. Discuss surface condition, access and permitted preparation in advance; do not assume a particular treatment is appropriate for every part.
Should I remove seals, fasteners and covers?
Remove only items that are non-critical, safely removable and within your authority. Photograph the assembly first and keep hardware organized. State whether the underlying feature or the assembled condition is what the replacement must represent.
What output should I ask for?
Specify whether you need a scan mesh, an editable CAD model, a print-oriented reference, dimensional review, a prototype or a manufacturing-ready handoff. The desired output changes capture, modeling and validation work.
