Should You Disassemble an Assembly Before 3D Scanning It?
Direct answer: do not automatically disassemble an assembly before 3D scanning it. Scan or document it in the assembled state first when the relative position of parts, mounting interfaces, gaps, or overall envelope matters. Then remove only the components that hide surfaces required for the intended CAD, inspection, or replacement-part result. The scan plan should preserve a usable coordinate relationship between the assembled and disassembled data.
A scanner can only capture a surface that its sensing geometry can observe. A cavity, mating face, underside, or feature behind a bracket may be physically present but absent from the measured data. Software can close a mesh hole for visualization, but that does not create reliable engineering geometry for an unseen interface.
1. Start with the required output, not the scanner
The correct level of disassembly depends on what the resulting data must answer. A visual model of the external envelope may require only assembled-state coverage. A replacement bracket may require its mounting face, hole pattern, and clearance to neighboring parts. Reverse engineering a housing can require both the outer form and internal bosses. Inspection against CAD may need the assembly held in its functional condition so deviations are not confused with a different pose.
| Required result | Useful scan state | Reason |
|---|---|---|
| External envelope or packaging reference | Assembly intact | Preserves the installed shape and surrounding clearances |
| Relative position of components | Assembly intact, with stable reference features | Records the relationship before anything moves |
| Hidden mating faces or internal interfaces | Controlled partial disassembly | Exposes geometry that cannot be measured from outside |
| Individual replacement component | Component removed, plus assembly-context scan or photographs | Captures complete part geometry without losing installation context |
| Deformation or fit assessment | Defined loaded or unloaded state | Makes the condition repeatable and interpretable |
Write a short measurement brief before the part is touched: the output format, critical interfaces, required coordinate system, features that must not be inferred, parts that may not be removed, and acceptance method. This prevents collecting a visually complete mesh that lacks the one hidden datum needed downstream.
2. Map visible, difficult, and hidden surfaces
Walk around the assembly and classify each required surface. A visible surface can be reached from several useful angles. A difficult surface may be observable only through a narrow approach, at a steep angle, or with limited overlap to surrounding geometry. A hidden surface is blocked by another component and cannot be recovered by simply increasing scan resolution.
Creaform explains that structured-light scanning builds coverage from images acquired at multiple positions until the mesh is complete. FARO similarly recommends selecting scanner positions and angles that provide line of sight and overlap around obstructions. These principles mean that scan access is a geometry problem before it is a software problem.
Pay special attention to mating faces, counterbores, deep pockets, narrow slots, the backs of flanges, underside ribs, and features close to another component.
Mark each required interface on photographs or a simple sketch. Use three categories: must measure directly, may be reconstructed from other controlled evidence, and not required. Never let automatic mesh filling silently move a critical surface from the first category to the second.
3. Preserve the assembly relationship before removing parts
Disassembly can solve access while destroying positional information. Before loosening a fastener, photograph the assembly from several directions, record part orientation and fastener location, and identify stable datums such as machined planes, hole patterns, shafts, or fixture references. If the assembled pose is required, acquire that scan first.
For movable mechanisms, define the state: closed, open, neutral, under spring load, or supported without load. A hinge, compliant seal, cable, or loose linkage can occupy different positions between scan passes. SHINING 3D warns that frequent coordinate changes and moving or shaking objects degrade scan quality; its guidance also requires relative positions to remain unchanged during some alignment workflows.

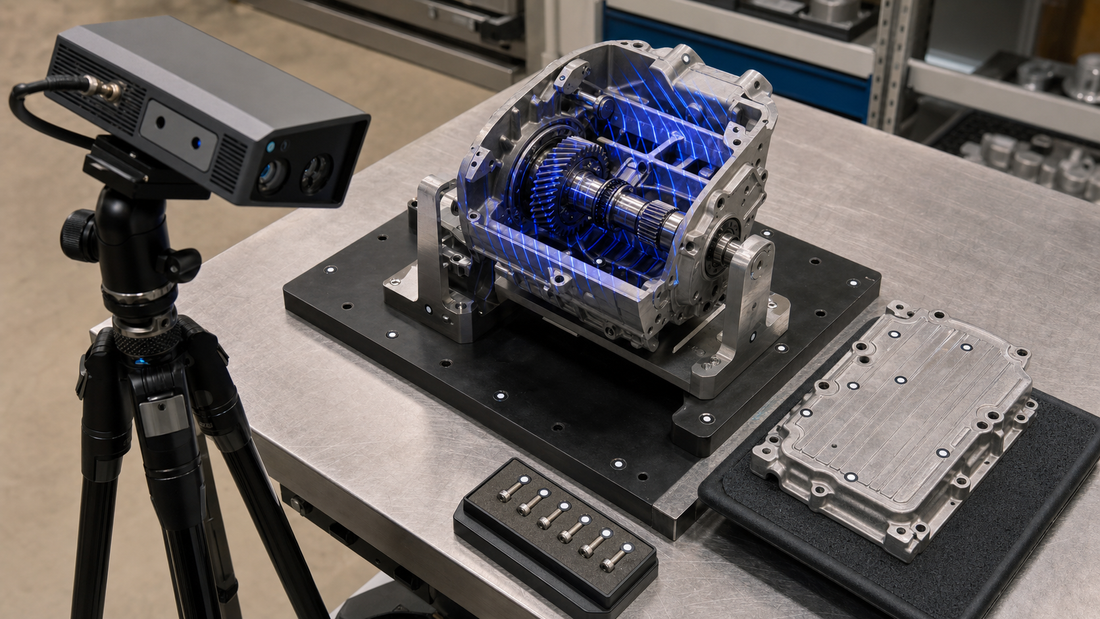

If an assembly will be scanned in several configurations, use a repeatable fixture or stable reference features that remain visible across data sets. Targets can assist registration when the scanner and workflow support them, but targets must not cover important geometry. Keep them fixed during the relevant scan sequence and distribute them according to the equipment guidance rather than placing them in a straight, symmetric pattern.
4. Plan scan passes and registration across configurations
A practical assembly workflow often uses more than one data set: an assembled overview, one or more partially disassembled scans, and individual component scans. Decide how these sets will be related before acquisition. Registration may use common geometry, targets, a fixture, measured datums, or a controlled coordinate system. The right method depends on the scanner, part geometry, required uncertainty, and downstream task.
Each adjacent pass needs enough reliable common information to align. Repetitive ribs, identical holes, rotationally symmetric shafts, and broad featureless surfaces can produce ambiguous matches. SHINING 3D recommends marker support for objects with limited or repetitive features and describes front/back scans as separate projects that are subsequently aligned. Creaform likewise notes that some laser systems use positioning targets while structured-light systems use geometry and texture across multiple views.
Do not merge every scan automatically and assume that a smooth-looking mesh is correct. Inspect registration residuals where the software provides them, check that hard features do not appear doubled, and compare known distances or datums.
5. Handle deep features, reflective surfaces, and missing data honestly
Deep holes and narrow cavities can remain incomplete because the projected light and observing camera do not both see the same surface. A different scanner angle, part orientation, or sensing mode may improve access, but no setup can guarantee every internal feature. For a critical bore, thread, or inaccessible depth, a complementary contact measurement, gauge, sectioned sample, drawing, or other controlled evidence may be more appropriate than an invented mesh patch.
Surface condition also matters. Dark, transparent, glossy, or reflective surfaces may need adjusted exposure or a removable scanning treatment compatible with the part and the required result. Do not spray a sensitive, porous, cosmetic, customer-owned, or functional surface without approval. If a coating is used, record it because any layer can affect the measured surface.
Keep generated closure surfaces separate from measured data. A watertight mesh can be useful for visualization or some additive workflows, but a filled opening should be labelled as reconstructed when it affects engineering decisions. For reverse engineering, rebuild functional planes, cylinders, and interfaces from suitable measured regions and validate the CAD against the source data.
6. Validate coverage before reassembly or return
Review the data while the assembly state can still be reproduced. Check every “must measure directly” surface against the brief, not merely the overall mesh appearance. Confirm that the assembled and disassembled scans share the intended coordinate relationship, critical edges are not blurred or doubled, and no required face is represented only by automatic hole filling.
For example, imagine scanning a pump bracket behind a protective cover. An assembled overview records the bracket position relative to the shaft and base. Removing the cover exposes the bracket face and fasteners. Removing the bracket exposes its back face and locating shoulder. Before reassembly, verify the mounting plane, hole centers, shaft clearance, and reference datums in the captured data. This staged approach avoids choosing between complete component geometry and assembly context.
- Define the deliverable, critical interfaces, coordinate system, and acceptance method.
- Photograph and, when required, scan the intact assembly before removing anything.
- Classify required surfaces as visible, difficult, or hidden.
- Record movable-part state and use stable support or a repeatable fixture.
- Plan common geometry, targets, or datums between scan configurations.
- Keep targets and fixtures away from critical surfaces.
- Distinguish measured data from reconstructed or filled geometry.
- Review coverage and registration before reassembly or return.
Frequently asked questions
Can a 3D scanner capture surfaces hidden inside an assembly?
Not through an opaque component. A surface must be observable by the scanner's sensing geometry. A different angle may help with a difficult surface, but a truly blocked mating face or internal feature normally requires disassembly or another measurement method.
Should the assembly be scanned before it is taken apart?
Yes when relative position, installed clearances, overall envelope, or mechanism state matters. Capture and document that state first, then disassemble only enough to expose required hidden geometry.
How are separate scans aligned after disassembly?
Depending on the equipment and task, alignment can use common geometry, positioning targets, a repeatable fixture, measured datums, or a controlled coordinate system. The method should be planned before parts move and validated after registration.
Does a watertight mesh mean every surface was measured?
No. Software can fill holes and create closure surfaces. For engineering use, identify which regions are directly measured and which are reconstructed, especially around mating faces, bores, and critical clearances.
