How Should You Orient an FDM Part When Strength Matters?
Short answer: orient an FDM part so its deposited roads and shells carry the important loads through continuous material wherever practical, while avoiding a critical tensile or peeling load across layer interfaces. Then balance that choice against support contact, build stability, surface finish, warping risk, and inspection access. There is no single “strongest orientation” for every 3D print; the correct orientation comes from the part’s real load path and failure mode.

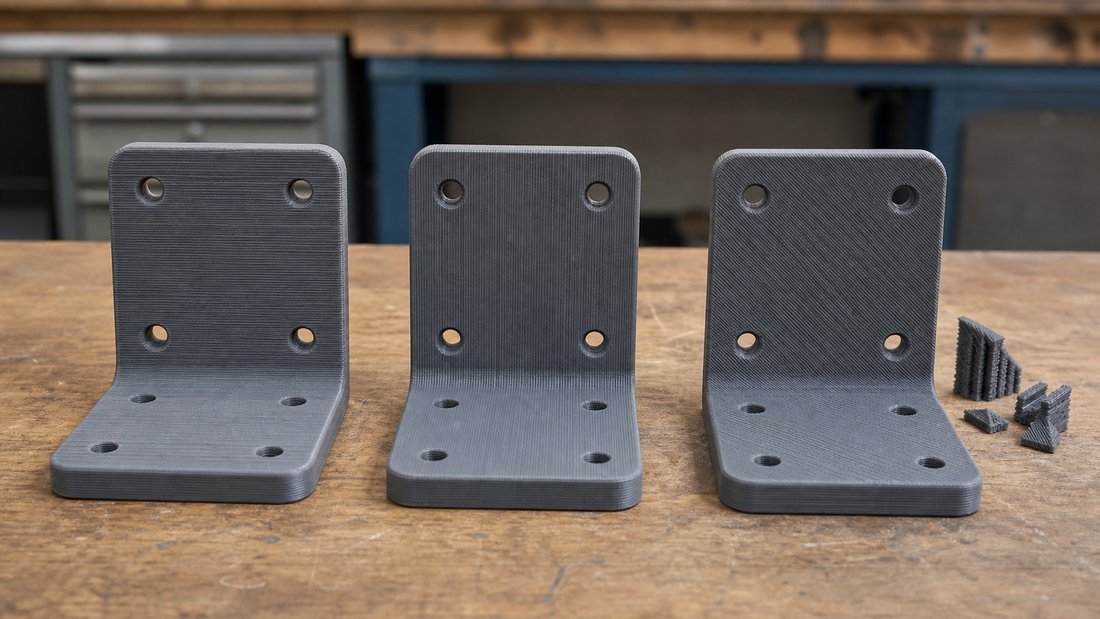

Start with the load path, not the largest flat face
Before rotating the model in a slicer, draw the forces on the assembled part. Mark where bolts, pins, clips, bearings, cables, or mating surfaces introduce load. Identify whether the part mainly sees tension, bending, compression, shear, impact, or repeated flexing. The same bracket may need a different orientation when it supports a steady vertical load than when it is repeatedly pulled away from a wall.
Material-extrusion parts are built from neighboring roads and stacked layers. NIST research describes the resulting geometry as neither homogeneous nor isotropic, and separate NIST work identifies the weld between deposited layers as an important strength-limiting region. This is why orientation belongs in the design conversation, not only in print preparation.
| Design question | Orientation implication | Evidence to review |
|---|---|---|
| Where is the highest tensile or peeling load? | Avoid placing that load directly across a thin layer interface when possible | Assembly sketch and expected force direction |
| Which face controls fit? | Keep it stable and away from damaging support contact | Mating part, datum, or functional interface |
| Which feature is slender? | Align continuous roads with the feature’s useful length where practical | Root radius, section thickness, and load cycle |
| What can be tested cheaply? | Print controlled orientation variants before committing to a batch | Simple fixture and pass/fail requirement |
Understand what the nozzle is actually building
In FDM or FFF, molten thermoplastic is deposited as a road, welded to adjacent roads and to the previous layer, then cooled. The nozzle path creates directionality inside the part. Perimeters can provide continuous material around an outer profile, while infill supports internal load transfer according to its pattern and density. The layer interface remains a distinct part of that structure.
This does not mean every part should be laid horizontally. A tall part may place useful roads along one feature but increase build height, wobble, support demand, or surface stepping elsewhere. A broad flat part may be stable yet accumulate thermal stress or warp. Stratasys guidance likewise treats orientation as a balance among function, surface finish, build time, and support use.
Protect thin roots, holes, bosses, and snap features
Failures often begin at a local feature rather than in the largest body. A sharp inside corner concentrates stress. A short cantilever forces more strain into its root. A hole close to an edge leaves a thin ligament. A boss loaded sideways may try to peel layers apart. First improve the geometry: add a sensible radius, widen the load path, move holes away from weak edges, and avoid abrupt thickness changes. Orientation cannot rescue a fundamentally poor section.
For repeated flexing, do not infer fatigue life from one successful bend. Material condition, temperature, creep, print settings, and surface defects can change performance. Define a cycle or functional check that reflects the real use, and treat a prototype result as evidence for that configuration—not as a universal material property.
Balance strength against supports and critical surfaces
The mechanically attractive orientation may put support contact on a sealing face, bearing seat, cosmetic surface, or snap interface. Support removal can leave texture, local marks, or dimensional change. Stair-stepping can alter a shallow slope. The build-plate face can be flat but may show first-layer expansion or texture. Identify critical surfaces before choosing the orientation.
Use self-supporting angles and bridges only where the chosen machine, material, and geometry have been verified. Do not copy a generic angle limit into a drawing as if it were guaranteed. If a face must be machined, sanded, sealed, or bonded later, leave appropriate material and access for that operation.
Do not use infill percentage as a substitute for engineering
Increasing infill may add material and change stiffness, but the outer shells, feature geometry, layer interfaces, and load introduction often matter more than a single percentage. A highly filled part can still split at a thin root or delaminate under a peeling load. Conversely, a well-oriented shell can carry a practical load without being a solid block.
Review shell count, top and bottom thickness, local reinforcement, infill pattern, and the connection between the loaded feature and the main body. Record the slicer settings used for a validated sample. If the part is safety-critical or its failure could injure someone or damage equipment, use an appropriate engineering validation route rather than relying on a blog rule or visual inspection.
Validate orientation with a controlled physical check
A useful orientation test changes one major variable at a time. Keep the CAD revision, material, machine, nozzle, process settings, and conditioning consistent; vary the orientation; then test the same requirement in the same fixture. The result might be a go/no-go assembly check, a defined dead load for a defined time, a bend to a specified stop, or verification that a mating surface remains usable after support removal.
- Document the CAD revision and exact build orientation.
- Record material and relevant processing conditions.
- Inspect the root, holes, support contacts, and mating faces.
- Use the same load direction and fixture for each comparison.
- Keep failed or marginal samples as evidence for the next revision.
When requesting 3D printing service support from MALIEV, send the model together with the assembly context, load direction, critical surfaces, use environment, and quantity. That allows an orientation discussion without inventing a guaranteed strength, tolerance, material, price, or lead time before the project is reviewed.
FAQs
Is an FDM part always weakest in the Z direction?
Layer interfaces commonly make through-layer loading a concern, but the actual result also depends on geometry, material, process settings, temperature history, raster strategy, and the type of load. Treat Z-direction weakness as a design risk to manage, not as a universal numeric rule.
Should the longest face always lie flat on the build plate?
No. Lying flat may shorten the build and improve stability, but it can put layer interfaces across a critical load path, create warping risk on a broad footprint, or place supports on an important surface. Compare the complete trade-off.
Can more infill compensate for poor orientation?
Not reliably. Infill can change stiffness, mass, and internal load transfer, but it does not remove weak interfaces or repair a poorly oriented thin root. Start with geometry and orientation, then choose shell and infill settings for the requirement.
What should I send when requesting an orientation review?
Send the 3D model, intended load direction, mounting method, critical surfaces, use environment, quantity, and what failure would look like. Photos or a simple assembly sketch are often more useful than an unsupported request for the strongest orientation.
