How Can You Reduce CNC Setups Without Changing Part Function?

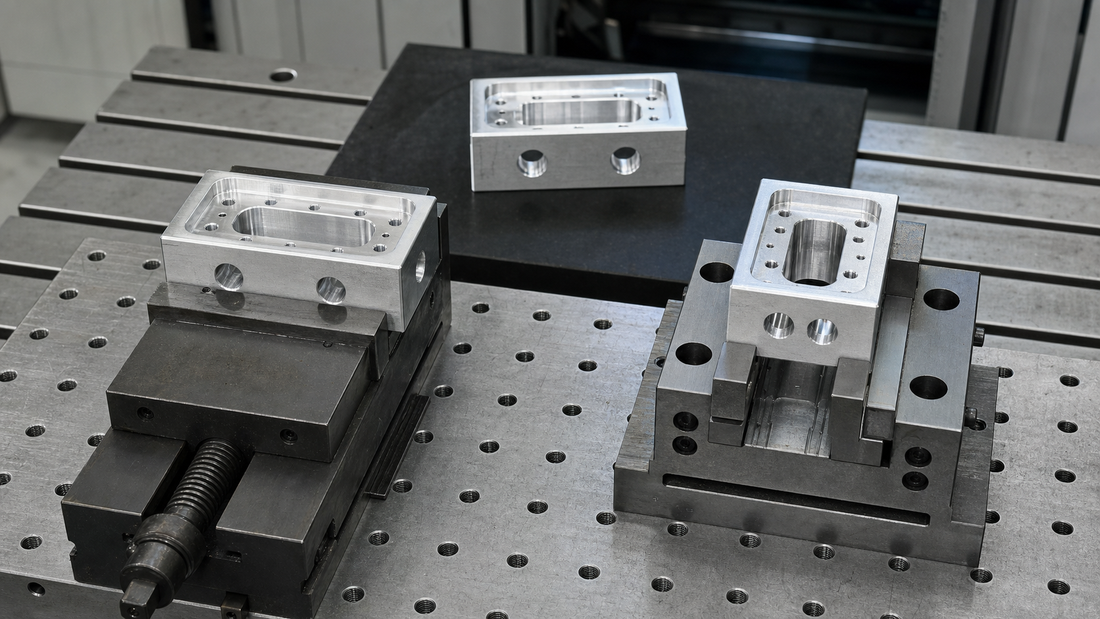

To reduce CNC setup count without changing part function, group features by tool-access direction, preserve stable clamping and datum surfaces, remove unnecessary side or underside operations, and review whether a difficult feature can move to an already-machined face. A setup is not just “press Start again.” The workpiece must be located, clamped, referenced to a work coordinate system, verified, and often inspected after every reorientation.
Fewer setups can reduce handling and accumulated variation, but one setup is not automatically cheapest. A forced one-holding strategy may require expensive multi-axis equipment, long tools, weak workholding, or awkward inspection. The goal is the simplest controlled process that still meets function.
1. Understand what creates another CNC setup
In CNC milling, a setup defines how the stock or partly machined workpiece is held and oriented relative to the machine. Autodesk’s manufacturing workflow separates the setup from toolpath programming, simulation, and code generation. NIST process-planning work likewise treats workpiece, fixture, setup, cutters, and inspection as connected manufacturing data.
A new setup is usually needed when the cutting tool cannot reach a feature from the current direction, when the existing clamp blocks access, or when the part must be relocated onto newly created datums. Typical triggers include holes on several side faces, an underside counterbore, a back-face sealing land, a true undercut, and a critical feature hidden behind a wall. Five-axis or live-tool equipment can combine some orientations, but the actual machine, travel, holder clearance, rotary limits, stock, and workholding still govern feasibility.
| Design condition | Likely process effect | Question to ask |
|---|---|---|
| Features face one principal direction | May share one setup | Can every tool and holder reach without colliding with clamps or walls? |
| Holes point in three unrelated directions | Additional orientations or multi-axis work | Can noncritical holes move to a common face? |
| Finished surfaces cover every possible clamping area | Soft jaws, tabs, or extra handling | Can the design preserve a robust locating and clamping land? |
| Critical relationship crosses two setups | More alignment and inspection effort | Can the related features be cut from one datum structure? |
| Deep pocket needs a long tool | Lower rigidity and slower cutting | Can the pocket be shallower, wider, open-sided, or split? |
2. Align feature directions before optimizing individual dimensions
Make a simple tool-access map. For every hole, pocket, slot, thread, counterbore, and finish surface, draw the direction from which a cutter must approach. Features with parallel approach vectors are candidates for one orientation. A radial hole that exists only for cable routing may be able to move to the top face; four side holes may become two through-holes; an underside recess may become an open pocket if the mating component already provides closure.
Do not move a feature only to save a setup. Keep bearing seats, seal lands, locating pins, flow paths, edge distances, and service access where the function needs them. Check assembly tools as well as cutting tools: a bolt relocated to an accessible machining face is not an improvement if a wrench cannot reach it in the product.
Autodesk’s tool-orientation guidance includes an accessibility preview because a surface direction alone does not prove reach. The cutter body, holder, spindle, nearby walls, and fixtures need clearance. Ask the manufacturer to mark inaccessible regions on the CAD model rather than debating “three-axis versus five-axis” in the abstract.
3. Preserve datums and clamping surfaces instead of sculpting every face
Cost-reduction edits sometimes remove the very surfaces needed to hold the part. A stable first setup generally benefits from broad, repeatable contact, adequate clamp force, and stock that does not deflect. Later setups need datums that can be cleaned, seated, and probed consistently. A decorative curvature across the whole exterior may force custom soft jaws before any functional feature is cut.
Provide three things where the product allows: a primary seating plane, a secondary side reference, and a tertiary stop or locating feature. They do not have to remain visible in the final assembly, but their relationship to critical geometry should be intentional. Avoid a design in which the only available clamp points are thin walls, sealing faces, cosmetic surfaces, or flexible tabs.
Tabs and sacrificial stock can help, but they are not free. They require material, machining, removal, and blending. A separate fixture can improve repeatability over a batch, yet fixture design and verification add non-recurring effort. For one-off work, a slightly larger flat land may be more economical than a dedicated nest.
4. Reduce reach, undercuts, and hidden surfaces that make one setup fragile
A feature that is technically reachable may still be inefficient. Protolabs flags deep holes, deep threads, undercuts, and restricted tool access because they can require special cutters or leave material. Sandvik recommends the shortest practical tool overhang to improve stability; long reach increases vibration risk and usually pushes the process toward lighter cuts.
Useful changes include increasing an internal corner radius, opening one side of a pocket, reducing depth that does not serve function, widening a narrow slot, replacing a blind underside counterbore with accessible hardware, and specifying a standard undercut only where assembly requires it. If a hidden internal passage cannot be drilled from a serviceable direction, consider whether it belongs in a separate cover plate or another process.
Splitting a part can turn inaccessible geometry into two simple faces, but count the new consequences: fasteners, seals, alignment pins, assembly labor, leak paths, tolerance stack, inventory, and inspection. Split only when the total product is better—not because two CAD bodies look simpler.
5. Keep critical relationships in one datum plan and compare total process cost
Setup reduction is especially valuable when two features must be tightly related. Machining a bearing bore and its mounting face from one controlled orientation may simplify positional control. When critical features must span setups, the process needs reliable datums, transfer accuracy, and inspection that recreates the intended reference frame.
Mark functional relationships on the drawing: which surfaces seat, which holes locate, what moves, what seals, and which dimensions merely clear. Apply tight tolerances to those relationships, not to every dimension. A broad title-block tolerance or profile callout can accidentally turn nonfunctional faces into inspection work and constrain fixture choices.
Before releasing the design, compare at least two process concepts:
- Expected setup and orientation count, including deburring and secondary work.
- Stock form and material removed.
- Workholding, soft jaws, tabs, or dedicated fixture needs.
- Tool reach, special tools, and holder clearance.
- Critical features made together versus transferred between setups.
- Inspection method and datum recreation.
- One-off quantity versus repeat batches that can justify tooling.
Send the STEP model, controlled drawing, quantity, critical interfaces, and permission to suggest geometry changes through MALIEV’s CNC machining service. Ask for a setup-oriented DFM review before freezing cosmetic and nonfunctional details.
Frequently asked questions
Does every machined side require a separate setup?
Not necessarily. Indexing, multi-axis machining, live tooling, or suitable workholding can expose several sides in one holding. Feasibility depends on the machine, rotary travel, stock, clamps, tool and holder clearance, and required accuracy.
Is one CNC setup always cheaper than two?
No. One setup can be more expensive if it requires a higher-cost machine, unstable long tools, complex workholding, or difficult inspection. Compare the complete controlled process rather than the setup count alone.
Which design features commonly add setups?
Side-facing holes, underside counterbores, back-face sealing lands, undercuts, hidden pockets, inaccessible threads, and critical features pointing in unrelated directions commonly add orientations or special tooling.
What should I send for a setup-reduction review?
Send the STEP model, drawing, material, quantity, critical datums and interfaces, assembly constraints, finish requirements, and a note identifying features that may move. The manufacturer can then compare realistic fixture and tool-access plans.
