How Should Thin Walls Be Designed for a CNC-Machined Part?
Direct answer: design a thin CNC-machined wall by controlling its height and unsupported span, keeping a stiff base or flange, preserving cutter and fixture access, and identifying which dimensions must still be true after unclamping. There is no universal “safe minimum wall thickness.” A short aluminum wall may machine cleanly while a taller wall of the same thickness vibrates, springs away from the cutter, or moves after residual stress is released.
When customers search for a CNC machining service, CNC milling service, or a supplier to manufacture parts from drawings, wall thickness is only one part of the quotation question. The machinist must also judge material, wall height, unsupported length, tool reach, stock condition, clamping, operation order, surface finish, and tolerance. The best RFQ makes those relationships visible.
1. Treat wall stiffness—not one minimum number—as the design variable
A thin wall behaves like a flexible beam or plate. As wall height and free span increase, stiffness falls rapidly. Cutting forces can then push the wall away from the tool. The result may be taper, chatter marks, thickness variation, a poor finish, or a dimension that changes when the part is released from the fixture.
Material matters too. Aluminum, engineering plastics, stainless steel, and copper alloys differ in elastic stiffness, cutting behavior, heat response, and residual stress. A plastic wall that looks substantial in CAD may move under clamping or heat. A long aluminum wall may ring during finishing. Published supplier thresholds are useful warnings, not promises: Protolabs, for example, flags geometry around 0.5 mm as high risk in its own process guidance. That figure belongs to its process context and should not be copied onto every drawing as a universal capability.
2. Improve the geometry before asking machining strategy to rescue it

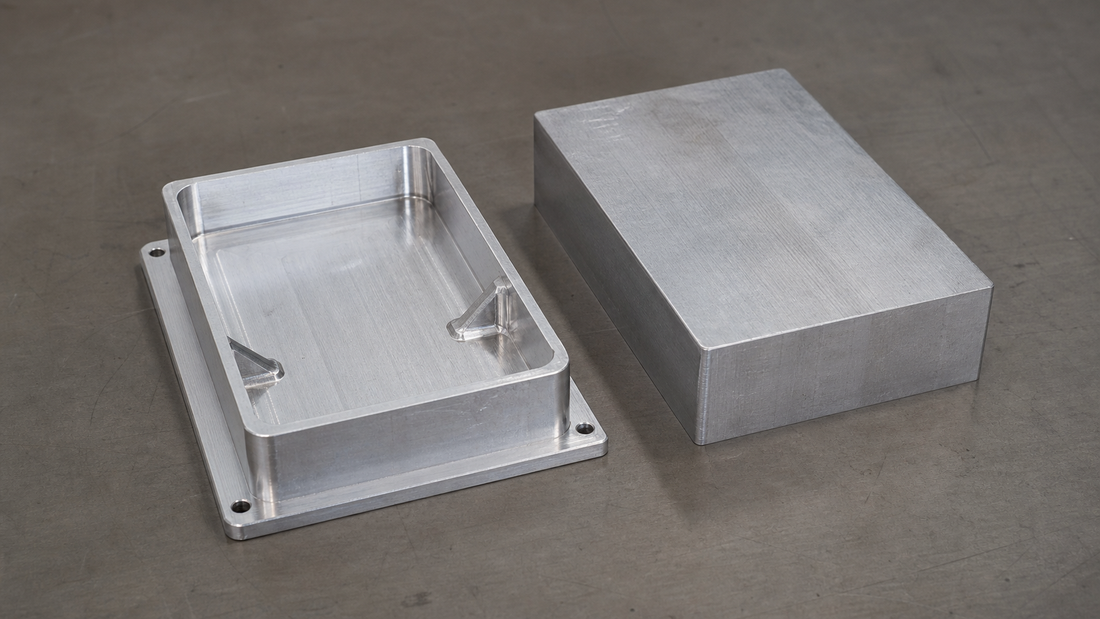

First reduce unsupported height or length if the product allows it. A thicker base flange, local pad, return wall, rib, or gusset can stiffen the feature without making every surface heavy. Broad internal corner radii also permit a larger, stiffer end mill. If the wall only needs to clear another component, consider a pocket, opening, or stepped thickness rather than a uniformly tall membrane.
Place reinforcement where the wall actually bends. A short rib near the base can help a cantilevered wall; a decorative rib far from the load path may add machining time without solving deflection. Avoid a forest of narrow ribs that leaves deep slots requiring long, small-diameter tools. Check both sides of the wall: a tool must be able to reach the surfaces that define thickness, and the fixture must still have robust areas to locate and clamp.
| Design condition | Likely risk | Useful response |
|---|---|---|
| Tall, long, uniform wall | Deflection and chatter | Reduce free span; add a return, rib, or thicker base |
| Deep slot beside wall | Long tool reach and cutter deflection | Open access; enlarge corner radii; shorten the feature |
| Thin wall clamped directly | Clamp distortion | Provide a robust flange or dedicated fixture surface |
| Tight profile after unclamping | Spring-back or warp | Define free-state inspection and review stock/stress strategy |
3. Leave support stock and finish the two sides in a balanced sequence
The operation plan often matters as much as the final CAD. Roughing one side completely can release the wall too early. A more stable approach is to retain supporting material, rough both sides with allowance, semi-finish in alternating or depth-ordered passes, and remove the final stock with light, consistent cuts. Autodesk’s CAM documentation describes thin-wall strategies that machine both sides at the same level to reduce movement, vibration, and chatter.
The exact sequence depends on geometry and machine access. Some parts benefit from a sacrificial web or tabs removed near the end. Others remain attached to a thick floor or frame until all critical surfaces are complete. A finishing pass cannot repair a wall that is already vibrating or permanently distorted, so stability must be planned from the first roughing operation.
4. Design workholding surfaces into the part and drawing
A fixture cannot hold a thin wall as though it were a solid block. Excess clamp force can bow the part; insufficient support can let it move. Give the machinist a thick base, flange, sacrificial pad, or other noncritical surface for location and clamping. A custom nest, soft jaw, vacuum fixture, or bonded support may be appropriate, but each method has limits and cost.
Mark surfaces that may be used for workholding and surfaces that must remain cosmetic. Also state whether a flange may be removed after machining. For small batches, a geometry change that enables simple vise work may be cheaper and more repeatable than a complex dedicated fixture. For repeat production, a supporting nest can become worthwhile because it controls loading and inspection consistently.
5. Specify the functional requirement and the free-state inspection method
Do not apply a tight tolerance to every wall surface by default. State what the wall must do: seal against a gasket, align a connector, clear a PCB, resist a known load, or fit another housing. Dimension the functional interfaces and use sensible general tolerances elsewhere. If wall thickness itself is critical, identify where it is measured and whether profile, flatness, parallelism, or position controls the function better.
Inspection conditions matter. A part can meet a dimension while constrained and move when released. For flexible parts, define whether acceptance is in a free state, lightly supported, or assembled to a mating component. A dial indicator can measure controlled deflection at a stated location; a CMM, optical method, height gauge, or dedicated checking fixture may be better for geometry. The tool must match the tolerance and part behavior—measurement should never be a decorative photograph.
RFQ checklist for a thin-wall CNC part
- Send the native CAD or STEP model, not only an STL or screenshot.
- Include a drawing with critical wall thicknesses, datums, tolerances, and finish.
- Identify material grade and any required temper or stress-relieved stock condition.
- Show mating parts, assembly constraints, seals, connectors, and load direction.
- Mark cosmetic faces and acceptable fixture or sacrificial areas.
- State prototype and expected production quantities.
- Explain whether inspection is free-state, supported, or assembled.
A common mistake is sending a deeply pocketed enclosure with every wall tightly toleranced but no explanation of function. Another is thinning the wall to save a small amount of weight while forcing long tools, special fixtures, and extra inspection. A third is adding ribs that block tool access. Early DFM review can often preserve the product requirement with a simpler, more stable geometry.
Frequently asked questions
What counts as a thin wall in CNC machining?
There is no universal thickness. A wall becomes thin when its stiffness is low enough that cutting force, clamping, heat, or handling can move it relative to the required tolerance and surface finish. Material, wall height, unsupported length, geometry, and tool access all matter.
Can a CNC shop machine a 0.5 mm wall?
Some geometries and materials may allow it, but 0.5 mm should not be treated as a general promise. Supplier guidance often flags walls around this range because they can deflect, break, or warp. The full CAD model, tolerance, material, and workholding concept must be reviewed.
Do ribs always solve a thin-wall problem?
No. Short, well-placed ribs or a thicker flange can increase stiffness, but ribs may also restrict cutter access, create small internal radii, or move distortion elsewhere. They should support the real load path and remain machinable.
What should I send for a thin-wall CNC quotation?
Send a STEP model, a drawing that marks critical wall thicknesses and tolerances, material and finish requirements, mating-part or assembly context, expected load direction, quantity, and which surfaces may be used for workholding.
