Can I CNC One Aluminum Part? A Guide to One-Off Machining, Files, and Design Choices

Yes—you can CNC machine one aluminum part. A one-off is often a sensible route when a functional prototype needs a real stock material, specific mounting faces, threads, holes or a machining-ready surface. The important question is not whether the quantity is one; it is whether the geometry, material, setup and acceptance requirement are clear enough to plan a responsible job.

People searching for รับ CNC อลูมิเนียม ชิ้นเดียว, CNC aluminum or โรงงาน CNC usually need a prototype or replacement quickly. A useful request identifies what the part must prove: fit, load path, material behaviour, a sealing face, a bearing interface, a thread, or an assembly check. That keeps a one-part enquiry from becoming a vague request for “precision” without an agreed condition.

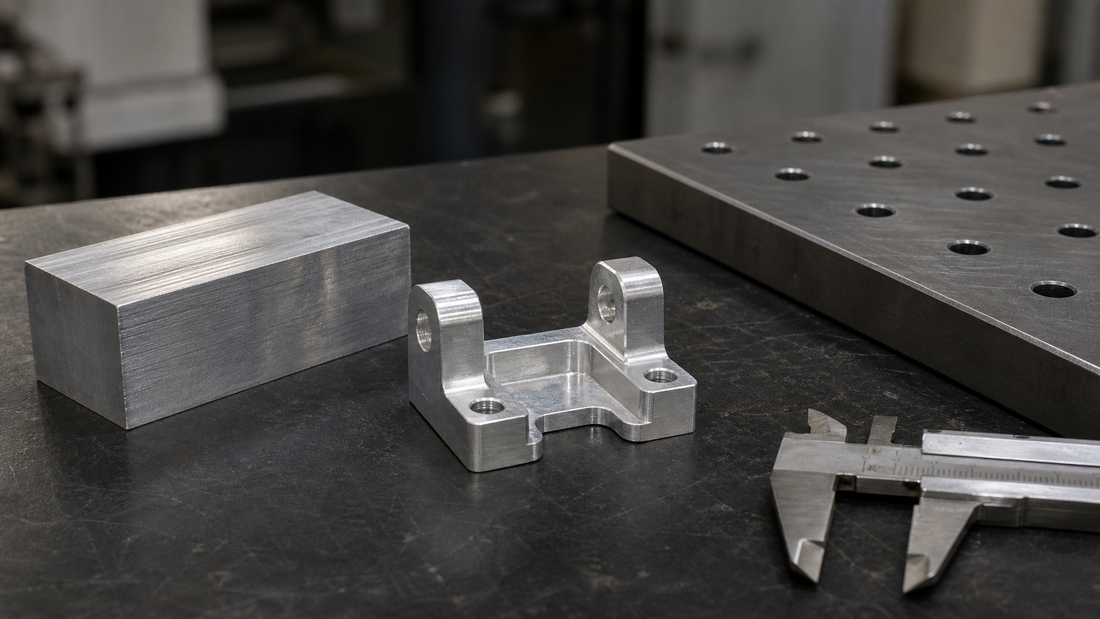

Machined aluminum bracket beside raw aluminum stock, caliper and fixture plate
A one-off machined bracket begins as stock material; the finished geometry, cutter access and workholding shape the practical machining plan.

1. One-off CNC is about the decision the part must support

One part can be enough to answer a valuable engineering question. It may test whether a bracket aligns with the existing assembly, whether a stock material suits the environment, whether a critical face can mate, or whether a design can be held and inspected in a realistic way. For that kind of decision, machining a single piece may be more relevant than using a visual model made from a different process.

It does not mean every one-off should be machined first. When the outer form, access or assembly sequence is still changing rapidly, a lower-risk printed prototype can uncover those changes before material is cut. A staged route can be efficient: learn the geometry with a prototype, then machine the stable critical interface or the full functional part once the question needs stock-material evidence.

2. Stock, workholding and cutter access matter before the first cut

CNC milling removes material from a starting block or plate. The part has to be held securely while tools approach the required faces. A design that looks simple on a screen may need multiple setups if it has features on several sides; some areas may be inaccessible to a standard tool direction. The raw-stock size, machining allowance, clamping locations and required finished faces are therefore part of the quote, not workshop trivia.

Send the real outer envelope and point out faces that cannot be marked or clamped. If a surface must remain cosmetic, seal, mate or locate another component, state it. A provider can then consider how the part might be held without assuming that any convenient face is sacrificial.

CNC end mill pocketing a securely clamped aluminum bracket blank with contained chips
A cutter removes material from a securely held blank; the workholding plan must preserve the faces and features that matter to the part.

3. Design the internal features for real tools

A milling cutter is round. It cannot create a perfectly sharp internal corner in a pocket, so a radius is normally left where internal walls meet. Autodesk’s Fusion documentation makes the practical rule explicit: the corner radius needs to match or exceed the tool radius used to machine it. If another component needs a square internal corner, consider a relief feature, a different assembly detail, a different process, or a specific secondary operation—do not leave the requirement implicit.

Deep, narrow pockets and tall thin walls also deserve an early review. They can limit cutter reach, stiffness, chip evacuation and the available tool diameter. A small tool may reach a feature but can change the practical machining approach. This is not a reason to make every feature larger; it is a reason to mark features that are functionally non-negotiable and separate them from features that can be adjusted.

Machined aluminum sample blocks showing an accessible pocket and a narrow tool-access constraint with end mill and caliper
Internal radii and cutter access are physical constraints of milling; geometry should be reviewed against the tools that can reach it.

4. Material, threads and finish should follow the actual job

“Aluminum” is a family of alloys and conditions, not a complete requirement. A functional request should describe the load, outdoor or corrosive exposure, electrical behaviour if relevant, thermal environment, mating materials and finish expectation. Protolabs’ CNC guidance lists aluminum among its milling materials and explains that machined aluminum can be supplied with different edge and finishing choices; those service-specific options are not universal material guarantees.

For threads, holes and inserts, provide the mating fastener or a clearly stated standard. Do not model an internal thread as a decorative spiral and assume that it communicates the requirement. For surfaces, distinguish “appearance matters” from “this face locates a part” or “this face seals.” The latter needs a geometry and acceptance discussion, not a generic request for a smooth finish.

5. Build a one-part quote package

Send Why it helps
STEP or native CAD Allows review of geometry, stock envelope and potential setups.
Quantity and required date Distinguishes a one-off trial from a stable repeat need.
Material requirement or operating context Supports a material discussion without guessing.
Critical dimensions, mating part and fasteners Identifies the interfaces that require attention or inspection.
Surface, edge and finish expectations Separates visual preferences from functional faces.

A short sentence about the prototype’s purpose is unusually valuable: “This part will check clearance around a moving linkage,” or “This plate must sit against an existing housing.” It tells the reviewer what to protect in the machining plan and what to validate after the part is made.

Machined aluminum bracket with blank drawing sheet, caliper, fasteners and mating plate on a review bench
A one-part quote becomes more useful when CAD is accompanied by the material context, mating details and the condition that the prototype must demonstrate.

6. Validate a single part in the real assembly

Do not judge a functional one-off only by whether it looks like the CAD. Assemble it with the real mating part when possible. Check locating features, fastener engagement, motion, clearance and the surface that matters. A fixture or controlled check can help reveal whether the design datum and mating relationship are understood. If the first part exposes a problem, record whether the cause is geometry, an assumption, material selection, assembly stack-up or an acceptance criterion that was never stated.

MALIEV can use a CAD file and this context to discuss an appropriate one-off CNC quote route. The restrained next step is a requirements review: it is more useful than a promise of price, tolerance or lead time before the geometry and intended use are known.

Machined aluminum bracket checked on a fixture with a round locating pin, relieved direction and caliper
Functional validation checks the important mating relationship; a controlled fixture can make the intended locating direction visible without claiming a measured result.

Frequently asked questions

Can I request CNC machining for just one aluminum part?

Yes, a one-off is a normal prototype use case. The practical quote still depends on the actual geometry, stock material, setup, workholding, required faces, inspection needs and due date—not only the quantity.

Why do inside corners in CNC pockets have radii?

A rotating cutter has a diameter, so it leaves a radius where two internal walls meet. Autodesk's Fusion documentation notes that an internal corner radius should match or exceed the tool radius used for the pocket.

Do I need a detailed drawing for one CNC part?

A STEP or native CAD model is valuable for geometry. Add a drawing or concise note when specific dimensions, threads, surfaces, material, finish, critical interfaces or acceptance conditions matter.

Should I specify an aluminum alloy if I do not know which one I need?

State the part's loads, environment, mating components, electrical needs, corrosion exposure and finish. That supports a responsible material discussion without guessing an alloy or promising a result.
