Why Do CNC-Milled Internal Corners Need a Radius?
Short answer: a CNC-milled internal corner needs a radius because the end mill is round. Its center follows a path offset from the walls, so it cannot remove material from an infinitely sharp concave corner. Design the largest internal radius the assembly can accept, and give the cutter clearance rather than making the part radius exactly equal to the tool radius. If a square mating part must enter, relieve or chamfer the mating geometry instead of automatically demanding a tiny cutter.
Customers searching “why do CNC pockets have rounded corners?” are usually solving a fit problem. The important question is not “how do I force the corner sharp?” but “which surfaces actually locate, seal or carry load?” Once that is known, the corner can often be simplified without changing function.
1. Separate vertical corner radius from bottom-edge fillet
A rectangular pocket has two related but different corner conditions. Looking down from above, the intersection of two vertical walls has a vertical internal corner radius controlled primarily by cutter diameter and toolpath. At the bottom, where a wall meets the pocket floor, there may be a bottom-edge radius influenced by the tool’s end geometry—square, corner-radius/bull-nose or ball end—and by the finishing strategy.
Mark which condition matters. A mating block may interfere with the vertical corners but not the bottom edge. A stress-sensitive housing may benefit from a bottom fillet even when the insert never touches it. A drawing that simply says “sharp corners” fails to distinguish these needs.
| Functional need | Useful design response | Risk to review |
|---|---|---|
| Square insert must seat | Chamfer insert corners or add pocket relief | Location, load path and visible gaps |
| Large lightening pocket | Use generous vertical radii | Remaining wall thickness |
| Stress-sensitive floor/wall joint | Specify suitable bottom fillet | Tool form and inspection |
| True sharp corner is functional | Evaluate EDM, broaching or split design | Access, material, cost and tolerance |
2. Give the cutter room; do not design to exact tool radius
Autodesk’s pocket-recognition guidance notes that the minimum pocket radius must be compatible with the machining tool. But a cutter that exactly matches the designed corner radius becomes heavily engaged as it enters the corner. Autodesk’s machining guidance warns that engagement and cutting force rise in internal corners, increasing deflection, poor finish or tool-break risk. CAM systems may slow down, blend the path or leave stock to avoid burying the cutter.
Therefore, “tool radius fits mathematically” is not the same as “stable, productive finishing.” A designed corner somewhat larger than the cutter gives the tool center a smoother path and reduces the sudden engagement change. The appropriate margin depends on material, depth, tool length, machine and finish requirement, so it should be reviewed rather than turned into one universal ratio.
3. Tiny radii increase tool reach, time and risk
A smaller vertical radius requires a smaller-diameter cutter. In a deep pocket, that cutter must also reach the full wall depth. Small diameter plus long stick-out reduces stiffness, making chatter, taper and deflection more likely. Chip evacuation and coolant access become harder. Even if a catalog tool exists, it may not be a sensible production choice.
Shops often rough with a larger rigid cutter, then use a smaller tool only where remaining corner stock demands it. This “rest machining” is technically valid but adds tool change, programming, cycle time and inspection burden. If the tiny radius serves no function, the customer pays for geometry that does not improve the assembly.
Depth should be discussed with radius. A radius that is easy in a shallow pocket may be difficult at several times the cutter diameter. Avoid placing the smallest corner at the deepest, least accessible region unless necessary.
4. Modify the mating part or use controlled relief

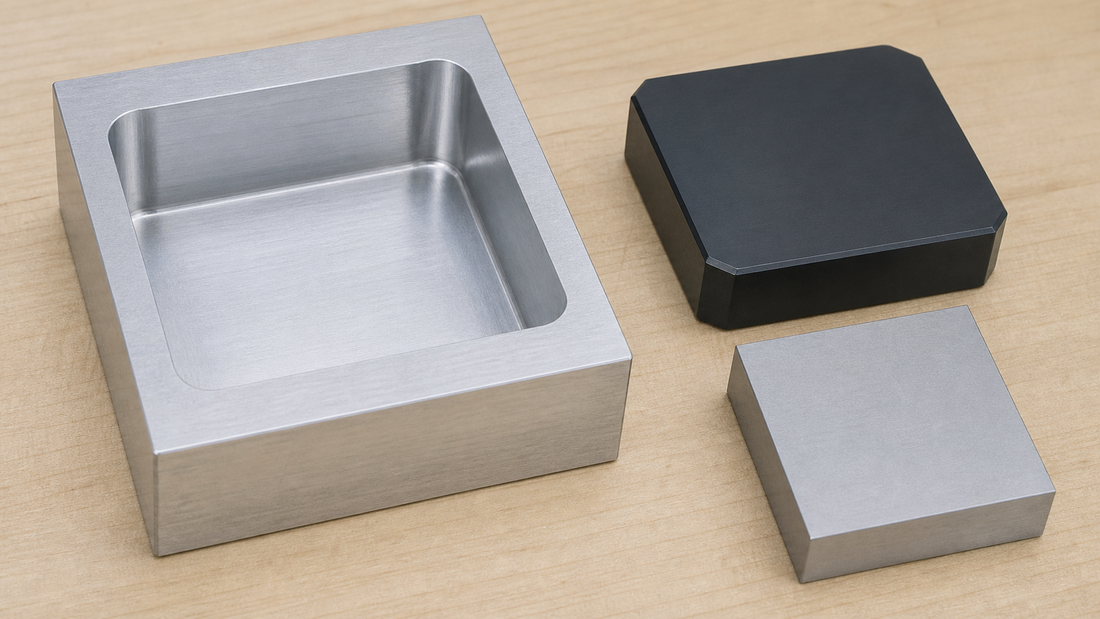

If a square plate, connector or insert enters the pocket, the simplest answer may be a small chamfer or outside radius on the mating part. Preserve the actual locating pads and allow the nonfunctional corners to clear. This often keeps the pocket machinable with a larger tool.
Dog-bone reliefs extend a small circular cut beyond each internal corner so a square external corner can pass. They are common where the relief does not harm sealing, appearance or strength. Relief geometry must be intentional: place it where it does not interrupt a gasket, expose a fluid path or weaken a thin wall.
5. Consider splitting the part or another process only when justified
A deep closed cavity may become two open machinable halves joined with locating pins, fasteners, bonding or a gasket. Splitting can improve cutter access and eliminate impossible deep corners, but creates new interfaces, tolerance stack, sealing and assembly work. The joint must be designed—not treated as a free workaround.
EDM can produce features unavailable to ordinary end milling, depending on geometry, access and material conductivity. Broaching or slotting may suit some through features. These methods are valuable when the sharp corner is genuinely functional, but they add process-specific constraints and should be called out explicitly. Protolabs’ DFM guidance similarly notes that sharp internal corners increase cost and recommends radii or relief when possible.
6. What to send for a CNC corner review
Identify the mating part and show an assembly section. Mark which faces locate, which carry load, which seal and which corners are merely empty space. Provide the minimum acceptable vertical radius and any bottom fillet separately. If no minimum is functional, authorize the supplier to use a practical radius subject to the envelope.
- Distinguish vertical wall corners from floor-to-wall fillets.
- State pocket depth and corner radius together.
- Show mating-part corner treatment and required clearance.
- Identify gasket, seal and cosmetic boundaries.
- Mark any corner that truly must be sharp and explain why.
- Allow DFM discussion before locking an unusually small tool radius.
For a MALIEV CNC quotation request, send STEP/native CAD, drawing, material, quantity and the mating assembly context. This gives the reviewer enough evidence to propose a radius, relief or split that preserves function without claiming every sharp CAD corner can be milled directly.
Frequently asked questions
Why can’t a round CNC end mill cut a perfectly sharp inside corner?
The cutter has a circular cross-section. Its center cannot move close enough to two intersecting walls to remove the material at an infinitely sharp concave corner, so a radius remains.
Should the corner radius equal the cutter radius?
That leaves little or no path clearance and can drive very high tool engagement in the corner. A larger designed radius generally gives the CAM programmer room for a more stable finishing path.
How can a square mating part fit a rounded CNC pocket?
Chamfer or radius the mating part’s outside corners, add dog-bone or corner reliefs to the pocket, change which surfaces locate the part, or redesign the assembly. Choose the option that preserves load, sealing and appearance.
When is EDM justified for sharp internal corners?
Only when the sharp geometry is functionally required and cannot be solved by relief, splitting or a different interface. EDM adds process, access, material and cost considerations, so it should be an explicit requirement rather than a default.
