From 3D Scan to CAD and Manufacturing: When a Mesh Needs Reverse Engineering

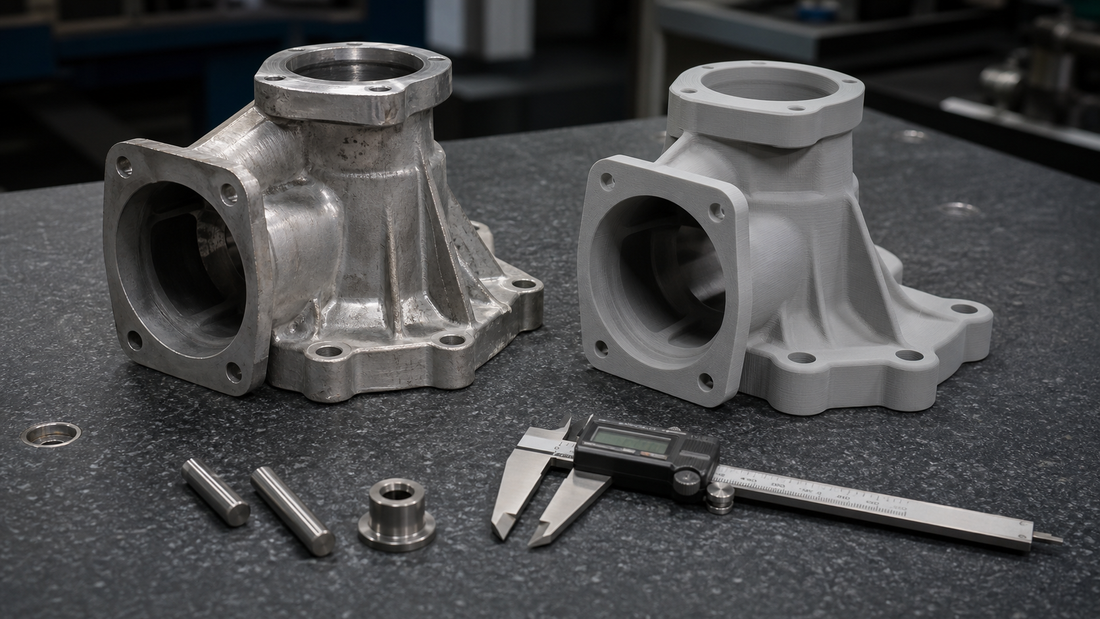

Short answer: a 3D scan is often the right starting point when the original CAD file is missing, but a scan is not automatically a manufacturing-ready model. Use the mesh to capture what exists; use reverse engineering to define the features, datums, fits, and dimensions that a replacement or revised part must satisfy. That distinction matters when a search for reverse engineering, 3D scan to CAD, or scan 3D part is really a request to make a part work again.
Start with the decision: what must the output do?
“Please scan this part” is a useful first request, but it leaves an important question open: what will happen after capture? A triangle mesh can be excellent for documenting a surface, comparing an as-built form, or creating a reference. It is not necessarily the model a designer wants to edit or the geometry a machinist wants to program from. The required output changes the capture plan, the measurement plan, and the level of reverse engineering.
| Need | Useful output | Question to answer before work starts |
|---|---|---|
| Visual record or surface comparison | Aligned mesh | Which surfaces and coordinate reference matter? |
| Modify an existing form | Mesh plus editable CAD surfaces/solid | Which faces are functional and which are cosmetic? |
| Make a replacement part | CAD model, drawing, and inspection plan as needed | What does it mate with, locate against, seal, or clear? |
| Reproduce a legacy design | CAD with documented assumptions | Which dimensions are known, critical, or uncertain? |
For a functional part, begin with use conditions rather than the scanner. Identify loads, temperature or chemical exposure where relevant, moving or mating features, fastening method, target process, and the consequence of a poor fit. Those are design inputs. A mesh does not contain them.
What the scan captures—and what it does not
Optical 3D scanning samples surfaces that the sensor can see. It produces a dense set of measured points that can become a triangulated mesh. Good surface coverage can preserve complex freeform shape efficiently; however, an ordinary optical scanner cannot directly capture an inaccessible internal wall, the bottom of a deep narrow bore, or a surface hidden behind an assembly. Reflective, transparent, very dark, or flexible surfaces can also require controlled preparation or another measurement strategy.
That is why a practical request includes the whole part when possible, several viewpoints, and information about the mating component. If a critical hole is not visible from the scan angle, a calibrated pin, a direct diameter measurement, or a drawing requirement may be more trustworthy than trying to infer it from a noisy mesh.
Define accuracy against a requirement: clearance at a mating boss, location of a bearing seat, spacing between mounting holes, or a sealing land.
Turn a mesh into CAD by recovering design intent
Reverse engineering is the deliberate step between a captured surface and a usable model. The operator cleans and aligns the mesh, selects reference geometry, recognizes features, and rebuilds them with CAD primitives or surfaces. A cylindrical boss may become a true cylinder; a mounting face may become a planar datum; a repeating hole pattern may be dimensioned from a common reference rather than copied as individual noisy triangles.
Choose datums from function. A stable mounting face, a locating bore, and a perpendicular side can form a practical reference frame. Avoid basing the model on a damaged edge, an as-cast texture, or a feature whose original design is unknown. When a worn part is the only reference, record which geometry represents intended design and which geometry represents wear or damage.
Feature recognition also makes the model easier to use downstream. Instead of a heavy faceted mesh, an editable solid can support changed hole locations, a revised bracket thickness, a tolerance callout, CAM programming, and a drawing.
Design the replacement for the manufacturing route
Do not delay process choice until after CAD is frozen. A one-off replacement bracket may be best modeled around machinable faces, cutter access, workholding, and a sensible stock orientation. A plastic prototype may favor additive manufacturing and different wall, support, and orientation choices. The final process determines which dimensions need inspection and which surface features can remain noncritical.
For CNC, identify internal corners that need tool radius, deep features that may need a longer cutter, thin sections that can deflect, and faces that need to be clamped. For additive manufacturing, identify build orientation, unsupported geometry, and the surfaces where post-processing or fit matters. In either case, a CAD model rebuilt from the mesh should express the required geometry—not merely trace every casting ripple.
Validate against the real interface, not only the digital overlay
A mesh-to-CAD deviation map can reveal broad agreement, but it cannot by itself prove function. Validate the features that carry the requirement. Measure center distances, mating faces, hole diameters, thread or insert specifications, bearing or shaft fits, and clearances with the mating part. If the risk is high, start with a low-cost fit check before committing to the final material and process.
Avoid common rework and brief the job clearly
- Treating the mesh as the specification: it is measured evidence, not a complete statement of intent.
- Scanning only the isolated part: omit the mating interface and you may reproduce shape without fit.
- Copying damage or wear: decide whether a scar, deformation, or worn face belongs in the replacement.
- Skipping direct measurements: use direct checks to anchor critical dimensions and surface access limits.
- Choosing CAD format last: agree whether the handoff is mesh, editable CAD, drawing, or a manufactured part.
How to brief a reverse-engineering job clearly
For a customer asking for 3D scan reverse engineering or a replacement without original CAD, prepare this short brief:
- Photos of the part from all sides and, if available, the mating assembly.
- The physical part and any known drawing, serial reference, or previous file.
- The intended output: mesh, STEP/other editable CAD, drawing, prototype, or replacement part.
- Critical interfaces, dimensions, material constraints, and use conditions.
- What is known to be damaged, worn, missing, or deliberately changing.
For a practical next step with MALIEV, send that brief and the available files or photos with your request. It lets the team discuss the right deliverable and manufacturing route without assuming an unsupported material, tolerance, lead time, or capability.
FAQs
Can a 3D scan replace CAD?
A scan records measured surface data; it does not automatically create a clean, editable CAD model with design intent. A mesh may be enough for inspection or visualization. A part that must be modified, dimensioned, machined, or reused usually needs reverse engineering into an appropriate CAD model.
What is the difference between a mesh and a CAD model?
A mesh approximates a surface with many triangles. A CAD model normally uses curves, surfaces, solids, dimensions, and features that describe geometry more directly. The best deliverable depends on the purpose: comparison, redesign, manufacturing, or documentation.
Can every part be scanned?
Not with the same method or confidence. Optical scanning needs access to the surface being captured; hidden internal areas, shiny or transparent surfaces, deep holes, and flexible parts may need preparation, another measurement method, or a different plan.
What should I send for a reverse-engineering request?
Send clear photos, the physical part if practical, the mating context, the critical dimensions or fits, the intended use, and the required output. State whether the goal is a mesh, an editable CAD model, a drawing, or a manufactured replacement.
