How Much Clearance Should You Add to 3D-Printed Mating Parts?
Short answer: design the fit from the assembly function, not from one internet clearance number. A moving joint needs guaranteed space across the full tolerance stack; a locating joint needs controlled contact without excessive assembly force; and a permanent interference joint must survive the resulting stress. For a 3D print, the safest route is to print a small fit coupon in the same process, material, orientation and finishing condition as the final part before committing to the complete assembly.
The search question “how much clearance should I add to a 3D print?” sounds numerical, but the useful answer is a workflow. CAD nominal size, process variation, feature orientation, surface texture, material response and post-processing all affect the as-built gap. The following method helps turn an ambiguous “make it fit” request into information that a designer, buyer and manufacturing supplier can act on.
1. Define what the joint must do before adding clearance
First classify the functional relationship between the mating surfaces. In a clearance fit, the worst-case manufactured parts must still have space between them. Sliding covers, rotating shafts and removable alignment pins fall into this family, although each needs a different amount of play. In a transition fit, the parts locate accurately and may require a light push, but should normally remain serviceable. In an interference fit, the assembled surfaces overlap in the dimensional model; assembly force creates contact pressure that holds the joint.
Formlabs describes these categories as a continuum rather than three perfectly isolated states. That distinction matters in printed polymer parts because surface texture and material compliance can make two dimensions with the same nominal difference feel very different. “Snug” is therefore not a complete requirement. State whether the part must slide under its own weight, move by hand, resist rattle, locate repeatedly, survive a specified load, or remain permanently assembled.
| Customer intent | Fit direction | What to validate |
|---|---|---|
| Free-moving guide or hinge | Guaranteed clearance | Motion across orientation, temperature and repeated cycles |
| Removable locating pin or cover | Clearance to light transition | Repeatable insertion, alignment and acceptable play |
| Hand-push assembly | Transition | Assembly force, retention and disassembly damage |
| Permanent retained pin | Controlled interference | Press force, hoop stress, creep and layer-direction failure |
2. Treat the gap as a tolerance stack, not a CAD subtraction
If a CAD hole is larger than a CAD pin, their nominal difference is only the starting point. The functional gap also depends on variation in both features. A simple worst-case check subtracts the largest plausible pin from the smallest plausible hole. If that result is negative, a nominal clearance can become an actual interference. The same logic works in reverse for a press fit: the smallest pin and largest hole define the weakest retained condition, while the largest pin and smallest hole define the highest assembly stress.
Add geometric behavior as well as size. A slightly oval bore, tapered wall, bowed pin or misaligned axis can bind despite apparently generous diameters. NIST notes that additive manufacturing introduces specification challenges related to build direction, layer thickness, supports and internal functional features. That is why a drawing should identify the functional surfaces and datums instead of relying on an overall “3D printing tolerance” note.
Also decide which feature is allowed to move in CAD. Preserve purchased hardware and critical datums. If the pin is a standard component, adjust the printed hole. If the bore locates an optical or bearing axis, it may be better to preserve that surface and adjust the mating printed component. Avoid scaling the whole model to repair one fit; global scaling changes every wall, pitch and interface.
3. Account for process, material and orientation
Printer “resolution” is not a promise that every finished dimension will match CAD. Formlabs distinguishes accuracy, precision and tolerance: a process may repeat consistently while retaining a systematic dimensional offset, or it may average near nominal while varying too much for the required fit. Surface finish also affects friction and the force needed to start assembly.
For FDM or FFF, bead width, layer height, thermal contraction, seam placement and the orientation of circular features can change hole shape and contact texture. A vertical pin and a horizontal pin may not behave alike. For resin processes, support placement, washing, cure condition and material behavior can affect dimensions and stiffness. Flexible materials can assemble with apparent interference but may creep or relax; brittle materials can crack at a sharp press-fit boss.
Post-processing belongs in the definition. A hole intended for drilling or reaming after printing is a different manufacturing route from an as-printed hole. Sanding, support removal and coating alter active surfaces. Record the final condition so the coupon and production part are compared after equivalent finishing.
4. Use a same-process coupon before the full build

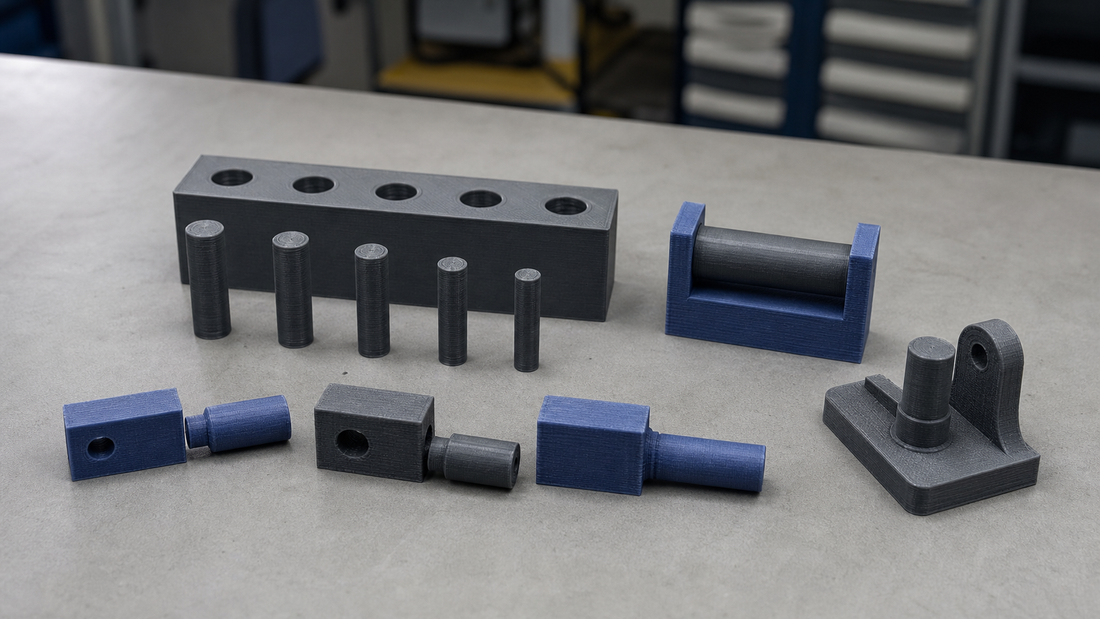

A good coupon reproduces the actual mating geometry at low cost. Use the intended pin diameter or mating hardware, then provide a small series of candidate offsets around the current design. Keep wall thickness, feature depth, orientation and support strategy representative. Place repeated samples on the build if consistency across the platform matters.
Test the coupon after the complete post-process. For a moving fit, check starting force, smooth travel, play, debris generation and repeated cycles. For a transition fit, record whether assembly is possible by hand and whether removal damages either surface. For interference, control alignment and force; then inspect the boss for whitening, splitting or delayed relaxation. If service temperature or humidity matters, test those conditions rather than assuming a room-temperature fit will remain unchanged.
The coupon result is evidence for that process window—not a universal constant. Preserve the selected offset, machine/process family, material, orientation, layer settings and finishing notes with the design revision. If any of those inputs change materially, revalidate.
5. Avoid the common “almost fits” mistakes
- Using one downloaded clearance value everywhere: it may come from another process, material, orientation or feature size.
- Calling every close fit “tolerance”: tolerance is allowable variation; clearance or interference describes the relationship between mating features.
- Ignoring lead-ins: a small chamfer can help alignment without changing the working fit along the full engagement length.
- Putting a press fit in a thin or sharp boss: the surrounding geometry must carry the assembly stress without splitting.
- Testing only one perfect sample: repeatability matters when more than one assembly will be produced.
- Repairing a local fit by scaling the entire STL: this changes unrelated dimensions and can create a new problem elsewhere.
6. What to send with a 3D-print quotation request
To make a request quote-ready, provide the CAD file—preferably a model that preserves intended geometry—plus the mating component or its controlled dimensions. Mark the active surfaces and state the fit in functional language: free sliding, low play, removable push fit, or permanent retention. Include expected load, cycles, temperature, chemical exposure, service/disassembly needs and whether post-machining is acceptable.
If the fit is uncertain, explicitly request a coupon or prototype stage before the full quantity. MALIEV can then review the supplied geometry and manufacturing intent as part of quotation preparation without treating an unspecified nominal gap as a guaranteed result. This reduces ambiguity for both the customer and the production team.
Frequently asked questions
How much clearance should I add to a 3D print?
There is no reliable universal value. Start from the fit function, printer process, material, orientation, feature size and post-processing, then print a small same-process coupon around the proposed CAD condition. Use the coupon result to choose the final offset.
Should I enlarge the hole or shrink the pin?
Change the non-critical or easier-to-revise feature while preserving the functional datum. For many assemblies that means adjusting the printed hole, but the correct choice depends on which surface locates the part, which component is purchased, and whether material must remain around the feature.
Can a 3D-printed press fit replace a screw?
Sometimes, for suitable loads, materials and service conditions, but a press fit is not automatically reusable or durable. Check hoop stress, layer orientation, creep, temperature, assembly force and disassembly needs. Use a fastener or insert when serviceability or a controlled clamp load matters.
Do resin and FDM parts use the same fit allowance?
Not by default. Their process behavior, surface texture, support effects, material stiffness and post-processing differ. Validate the intended fit using the actual process, material, orientation and finishing route rather than transferring a coupon result from another process.
